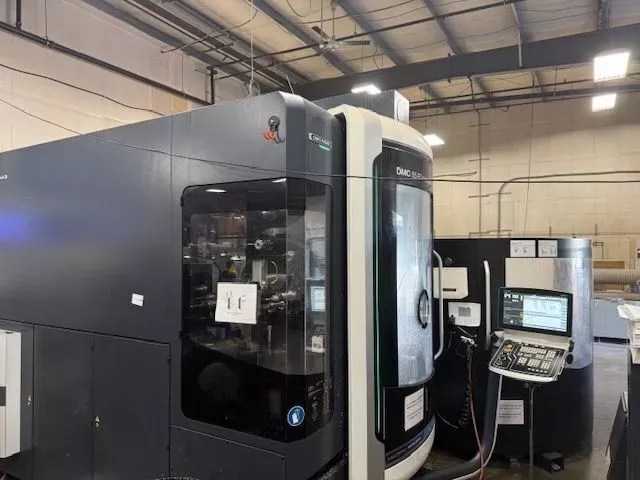

DMG MORI DNC 65 MONOBLOCK RS6 5 Axis

X-axis travel: 28.9″
Y-axis travel: 25.5″
Z-axis travel: 22″
Rapid traverse X-axis: 1,575 in/min
Rapid traverse Y-axis: 1,575 in/min
Rapid traverse Z-axis: 1,575 in/min
Cutting feed rate: 1,575 in/min
A-axis travel: ±120°
C-axis travel: 360°
CNC control: CELOS with Siemens 840D SI Operate
Number of pallets: 6
Integrated NC rotary table size: 26.8″
Rotary pallet storage RPS 6/M/T with 6 pallets
Infrared measurement probe Renishaw SK40
Renishaw OMP-60 optical probe system
Tool measuring system Blum Laser FD
Tool breakage control mechanical
ATC application turning cycle
Mill/turn package HSK A63
Production package 80 bar coolant, 980 L, frequency control
Rotating clear view window
Spray pistol chip rinsing
Oil emulsion mist separator
Cooling air blast
Sensor package i4.0
Safety package for power failure
Chip conveyor
3D Quickset tool kit for 4/5 axis accuracy compensation
Coolant filtration system with paper filter
Spindle chiller
Maximum workpiece diameter: 33″
Maximum workpiece height: 19.6″
Spindle speed: 20,000 RPM
Main spindle power: 47 hp
Main spindle taper: HSKA63
Vertical turning table size: 26.0″
Vertical turning table speed: 1,200 RPM
Vertical turning table power: 49.6 hp
Automatic tool changer capacity: 180 tools
Tool diameter: 6.3″
Tool length: 12.4″
Tool weight: 17.6 lb
Table load capacity: 1,322 lb
Machine weight: 34,092 lb
