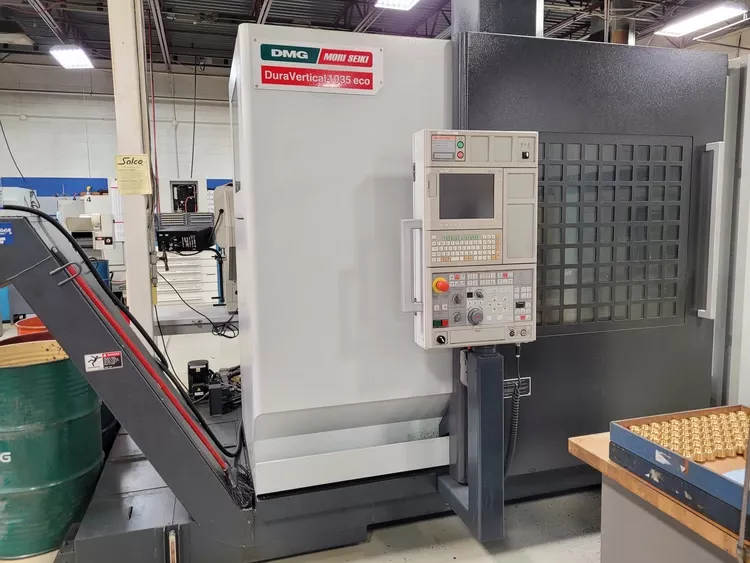

DMG MORI ECOMILL 1035V 6 Axis

DMG MORI ECOMILL 1035V
Year: 2012


Number Of Tables / Pallets: 1
Table Size : 47.2" X 22"
Weight On Table: 2207. LBS.
Integrated NC Rotary Table Size: 0
Spindle Nose To Table: 4.7" ~ 24.8"
X - Axis Travel: 40.7"
Y - Axis Travel: 22"
Z - Axis Travel: 20.1"
A - Axis Travel: 0
B - Axis Travel: 0
C - Axis Travel Table Indexing: 0
Rapid Traverse X, Y, Z: 1417, 1417, 1417 IPM
Cutting Feed Rate: 944 IPM
Spindle Speed: 12,000 RPM
Spindle Taper: 40
Number Of Gear Ranges: 0
Main Motor: 20 HP
Vertical Turning Table Size, Number Of Tables: 0
Table Spindle Speed Vertical Turning: 0
Table Spindle Horse Power Vertical Turning: 0
Automatic Tool Changer: 30 ATC
Tool Diameter: 3.1", 4.9"
Tool Length: 11.8"
Tool Weight: 17.6" LBS.
Machine Weight: 10,788 LBS

SPINDLE CHILLER
ALL AVAILABLE MANUALS
INVERSE TIME FEED
ADDITIONAL BLOCK SKIP
PROGRAMMABLE MIRROR IMAGE
AUTOMATIC CORNER OVERRIDE
POLAR COORDINATE COMMANDS
CHIP CONVEYOR
3D MACHINING SIMULATION
MORI M730BM CNC CONTROL
BLUM TOOL PRESETTER
