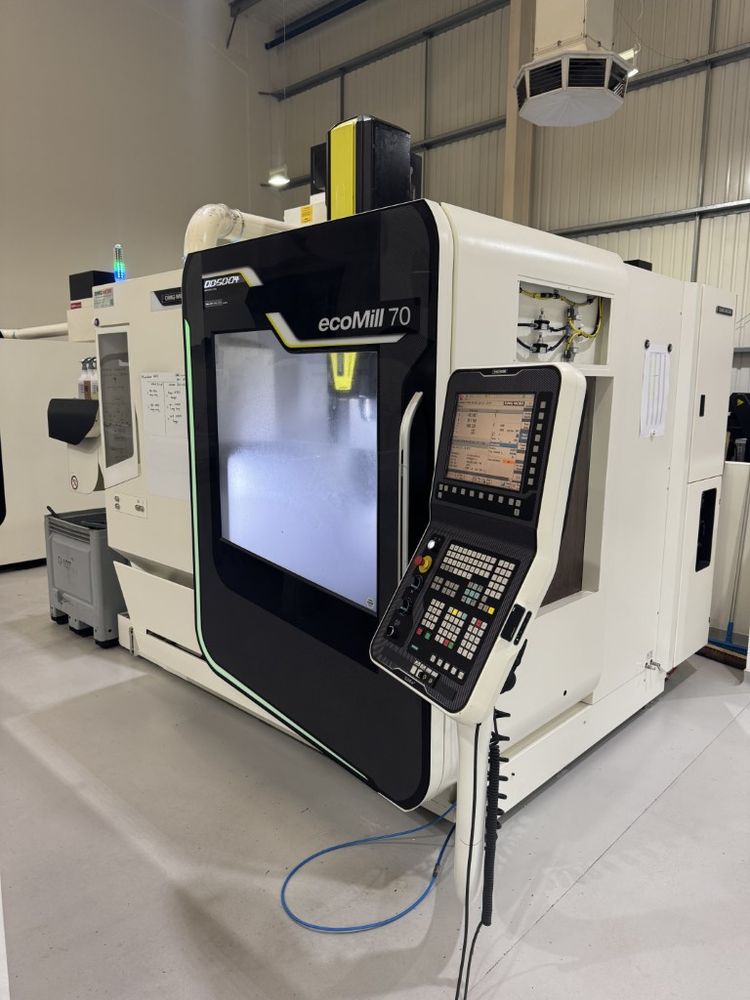

DMG MORI ecoMill 70 5 Axis

Travels (X/Y/Z): 750 x 600 x 520 mm
B Axis: -5 / +95°
C Axis: 0.001° (360° rotation)
Control: SLIMline® with Operate 4.5 on SIEMENS 840D solutionline
Coolant
Interlocked Guards
Low Voltage Light
Remote Hand Wheel
Spindle Probe
Swarf Conveyor
Tool Setter
Spindle Speed: 12000 rpm
Spindle Motor Power: 13 / 9 kW
Tool Size: BT40
Tool Change Capacity: 32 Station
Tool Change Time (Chip to Chip): 5 sec
Maximum Tool Diameter: 80 mm
Maximum Tool Diameter with Empty Adjacent Pockets: 130 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 6 kg
Table Size: 800 x 620 mm
Maximum Workpiece Weight: 350 kg
Maximum Cutting Feedrate: 24 m/min
Rapid Feedrate: 24 m/min
Machine Dimensions: 4520 x 3227 x 2710 mm
Machine Weight: 7800 kg
