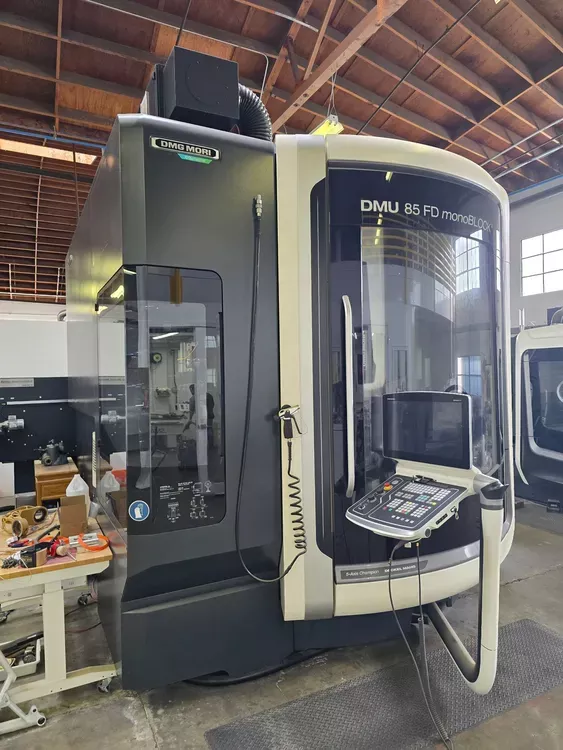

DMG MORI MONOBLOCK DMU 85 FD 5 Axis

X-Axis Travel 36.8"
Y-Axis Travel 33.5"
Z-Axis Travel 25.6"
C-Axis Travel Table Indexing 0.001

Rapid Traverse Rate X 1,574.8 in/min
Rapid Traverse Rate Y 1,574.8 in/min
Rapid Traverse Rate Z 1,574.8 in/min
Cutting Feed Rate 1,574.8 in/min
Number Of Tables / Pallets 1
Table Size Length 33.5"
Table Size Width 29.5"
Weight On Table 2,204 lb
Main Spindle Horse Power 46.9 hp
Main Spindle Speeds 18,000 RPM
Main Spindle Taper 63
Vertical Turning Table Size 33.52
Vertical Turning Table Speed 800 RPM
Vertical Turning Table Horse Power 48.3 hp
Automatic Tool Changer 120
Tool Diameter 6.3"
Tool Length 16.5"
Tool Weight 17.6 lb
Machine Weight 33,000 lb
Control CNC
NC Swivel Rotary Table Tandem Drive
Package Mill / Turn HSK-A 63
Tool Magazine Chain 60ATC SK 40
Infrared Measuring Probe Heidenhain SK 40
Combination Tool Measuring In Machining Area M / T
3D Quickset
MPC Machine Protection Control
Signal Lamp 4-Color
Production Package 40BAR / 23 L / M, 600 L Tank M / T
Spray Pistol With Pump 1 Bar / 40 L / Min
Electric Handwheel ITNC 530
Application Turning Cycle ATC
Operation Mode 4
Machine Version 60 HZ
Tropical Package (Ambient Temp. Max 50°C)
Chip Conveyor
Siemens 840D CNC Control (19" Display)
