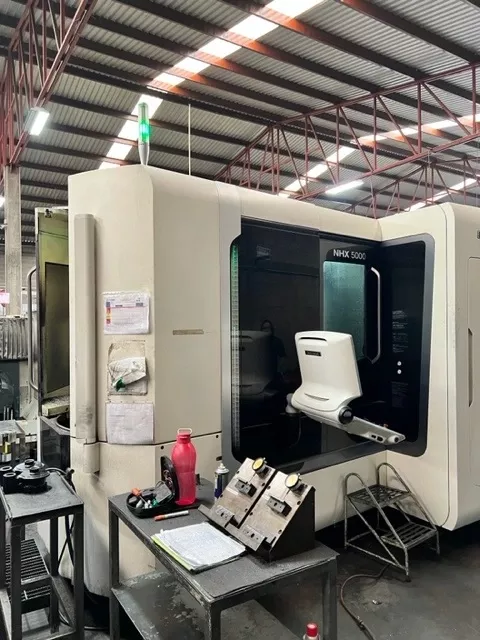

DMG MORI NHX 5000 4 Axis

DMG MORI NHX 5000
Year: 2017


Pallet Size: 19.7" X 19.7"
Number Of Pallets: 2
Pallet Weight Capacity: 1100 LBS.
Pallet Surface to Spindle Center: 3.1" ~ 31.9"
Pallet Center To Spindle Gage Line: 2.8" ~ 37.4"
Workpiece Dimensions: 31.4" X 39"
X - Axis Travel: 28.7"
Y - Axis Travel: 28.7"
Z - Axis Travel: 28.7"
B - Axis Travel: .001 DEGREE
Rapid Traverse Rates X, Y, Z: 2362, 2362, 2362 IPM
Rapid Traverse Rate B Axis: 0
Cutting Feed Rate: 2362 IPM
Spindle Speed: 15,000 RPM
Spindle Taper: 40
Number Of Ranges: 0
Main Motor: 40 HP
Automatic Tool Changer: 60 ATC
Tool Diameter: 2.7", 6.6"
Tool Length: 21.6"
Tool Weight: 26.4 LBS.
Tool Change Time: 3.3 SECONDS
Machine Weight: 24,420 LBS.

FULL 4TH AXIS
CHIP CONVEYOR
AVAILABLE MANUALS
MORI SEIKI M730UM CNC CONTROL
MAPPS CONVERSATIONAL PROGRAMMING
HELICAL INTERPOLATION
CUSTOM MACROS
TOOL TIP AIR BLOW
DIRECT SCALE FEEDBACK X, Y, Z AXIS
AUTO POWER OFF
SHOWER COOLANT
HIGH PRESSURE COOLANT THRU SPINDLE
SYNC. TAPPING
HIGH PRECISION CONTROL LOOK AHEAD
CUSTOM MACRO
