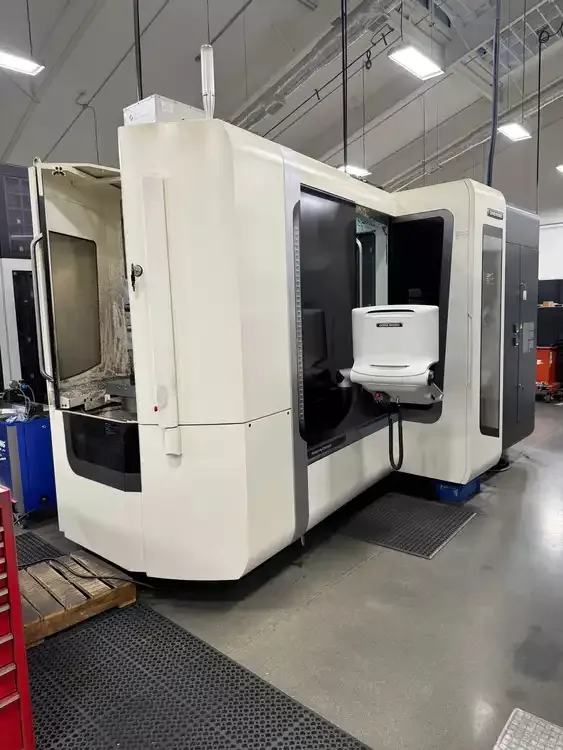

DMG MORI NHX 5000 4 Axis

DMG MORI NHX 5000
Year: 2016

Pallet Size - L 19.7 mm
Pallet Size - W 19.7 mm
Number of Pallets 2
Pallet Weight Capacity 1,100 lb
Workpiece Dimensions 39"
X - AxisTravel 28.7 mm
Y - Axis Travel 28.7 mm
Z - Axis Travel 28.7 mm
B - Axis Travel .001
Rapid Traverse Rate - X 2,362 in/min.
Rapid Traverse Rate - Y 2362 ipm
Rapid Traverse Rate - Z 2362 ipm
Rapid Traverse Rate - B 0 in/sec.
Cutting Feed Rate 2,362 in/sec.
Spindle Speed 15,000 RPM
Spindle Taper 40
Number of Ranges 0
Main Motor 40 hp
Automatic Tool Changer 60
Tool Diameter 6.6"
Tool Length 21.6"
Tool Weight 26.4 lb
Tool Change Time 3.3 sec.
Machine Weight 24,420 lb
Control CNC (M370UM)
Weight 0.00

CHIP CONVEYOR
AVAILABLE MANUALS
MORI SEIKI M730UM CNC CONTROL
MAPPS CONVERSATIONAL PROGRAMMING
HELICAL INTERPOLATION
CUSTOM MACROS
HIGH PRESSURE COOLANT THRU SPINDLE
SYNC. TAPPING
ATLM
PART PROBE
(2) 4 SIDED CHICK TOMBSTONES
HIGH PRESSURE COOLANT SYSTEM
