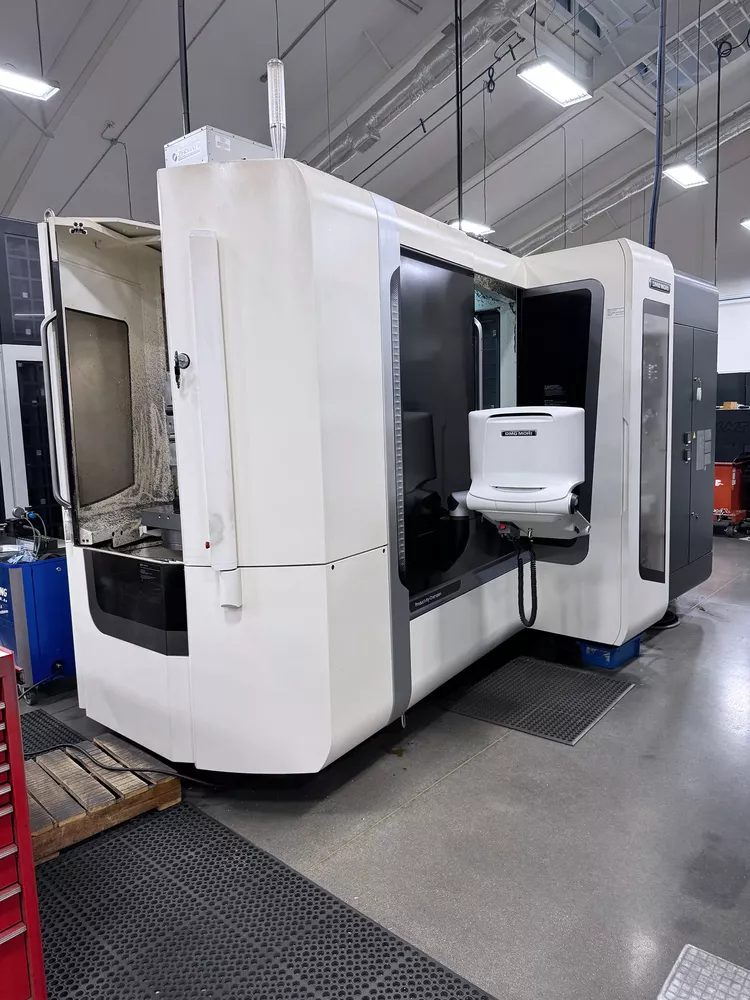

DMG Mori NHX 5000 4 Axis

X axis travel: 28.7"
Y axis travel: 28.7"
Z axis travel: 34.6"
B axis: 0.001°

Control: CELOS M730UM MAPPS Control
Spindle speed: 15,000 RPM
Spindle motor: 40 HP
Spindle taper: CAT 40 Big Plus
Tool capacity: 60 ATC
Pallet size: 19.7" x 19.7"

Maximum workpiece swing diameter: 31.4"
Maximum workpiece height: 39.4"
Distance from pallet surface to spindle center: 31.9"
Distance from pallet center to spindle gage plane: 7.4"
Distance from floor surface to pallet surface: 47.2"
Pallet loading capacity: 1,540 lb
Machine equipped with:
M730 CNC CELOS Control with Celos and MAPPS

Full 4th Axis Direct Drive
Chip Conveyor
Renishaw OMP 60 Probe
Metrol Touch Sensor
Coolant Thru Spindle 1000 PSI
Chip Blaster
Mist Blaster Unit
(2) Tombstones included
Cutting Time 9000 hours
