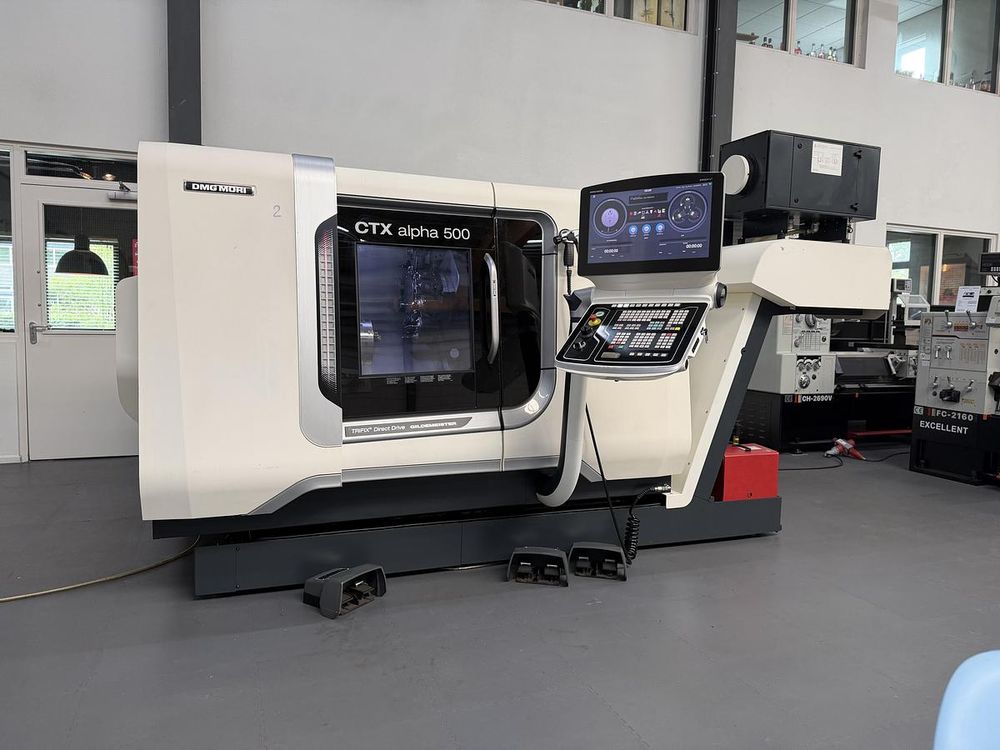

DMG, Mori Siemens 840D ShopTurn 3G (ERGOline) + CELOS 5500 RPM CTX ALPHA 500 V6 6 Axis

X-Axis Travel: 210 mm
X1-Axis Travel: 145 mm
Y-Axis Travel: ±40 mm (80 mm total)
Z1-Axis Travel: 525 mm
Z3-Axis Travel: 550 mm
Rapid Traverse (X): 30 m/min
Rapid Traverse (Y): 22.5 m/min
Rapid Traverse (Z): 30 m/min
C-Axis: 300 RPM, 192 Nm, 0.001°

Control: Siemens 840D ShopTurn 3G (ERGOline) + CELOS
Band Filter System with High-Pressure Pump
Chip Conveyor
Wash Gun
Mist Extraction Unit
Original Documentation Included

Bar Capacity (Main Spindle): 73 mm
Bar Capacity (Sub Spindle): 37 mm
Swing Over Bed: 500 mm
Swing Over Slide: 290 mm
Maximum Turning Diameter: 240 mm
Maximum Turning Length: 500 mm

Main Spindle Speed: 0–5500 RPM
Sub Spindle Speed: 0–6000 RPM
Main Spindle Motor Power: 13 / 14 kW
Sub Spindle Motor Power: 12.6 / 16.2 kW
Main Spindle Nose: FL140h5
Sub Spindle Nose: FL140h5
Sub Spindle: Yes

Chuck Diameter (Main Spindle): 225 mm
Chuck Diameter (Sub Spindle): 170 mm
Turret: VDI30
Turret Positions: 12
All Turret Positions Driven
Driven Tooling Included: 6 Holders
Static Tool Holders Included: 4 Holders

Machine Weight: 4,300 kg
Machine Dimensions: 4066 x 2583 x 1829 mm
Spindle Hours: 3,680 h
