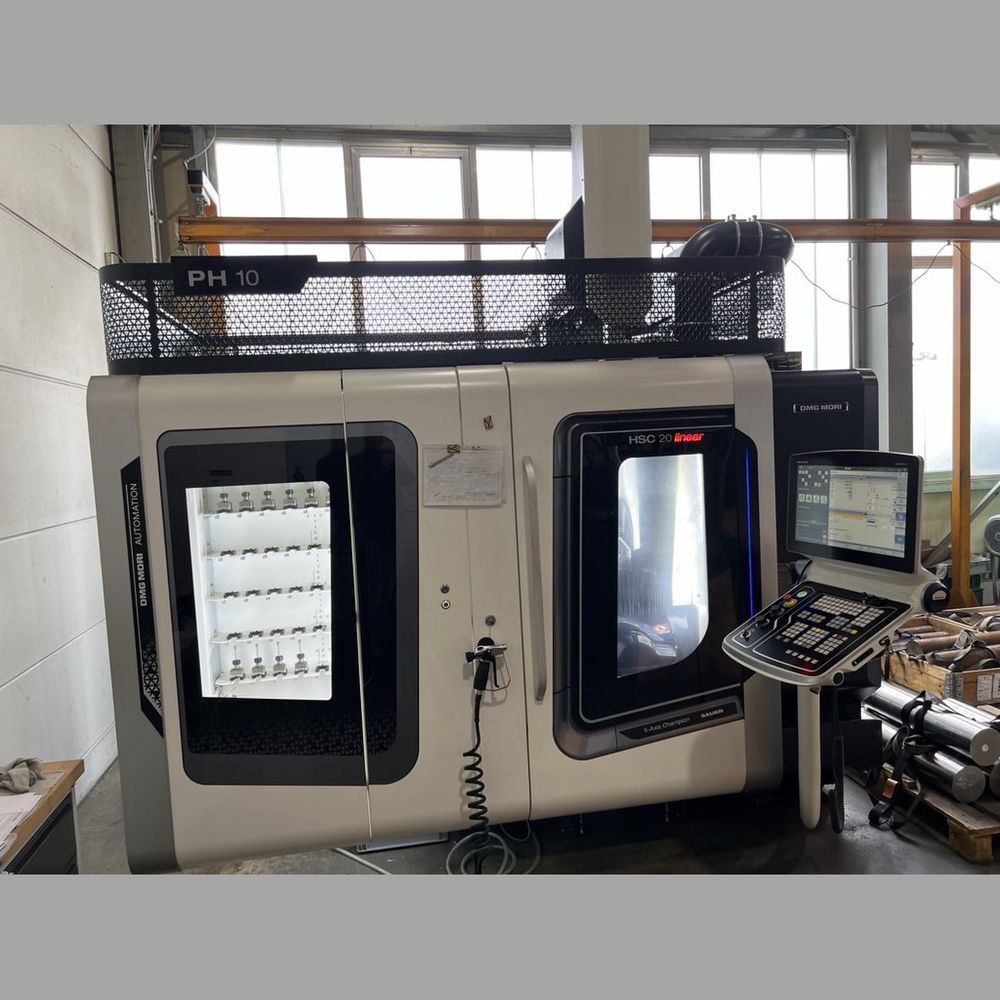

DMG SAUER HSC 20 linear 5 Axis

DMG SAUER HSC 20 linear
2020

Control Siemens 840 D solutionline
5-axis machining
X travel 200 mm
Y travel 220 mm
Z travel 280 mm
Rapid traverse X/Y/Z 40 m/min
Linear drive X/Y/Z
Tool taper HSK E32
Spindle speed 60000 rpm
Torque at 10-40% duty cycle 4.8 Nm
Torque at 100% duty cycle 3.6 Nm
Tool magazine capacity 60 tools
Max tool diameter 50 mm
Max tool length 200 mm
Chip-to-chip time less than 10 s
NC-controlled swivel unit
Swivel range -15 to +130 degrees
NC-controlled rotary table
Rotary table diameter 250 mm
Rotary table speed 1500 rpm
IR measuring probe
Fully enclosed work area
Work area lighting
Oil and emulsion mist extraction unit
Internal coolant supply
Flush gun
Coolant unit with paperband filter
High pressure pump 40 bar
Pallet handling system with magazine
Operation mode 4
3D quickSET
Electronic handwheel
External cabinet cooler
Air supply 6 bar
Main fuse 100-125 A
Power requirement 50-70 kVA
Machine dimensions 1950 x 2050 x 2430 mm
Machine weight 4500 kg
Machine hours approx. 3043
Spindle hours approx. 1453
