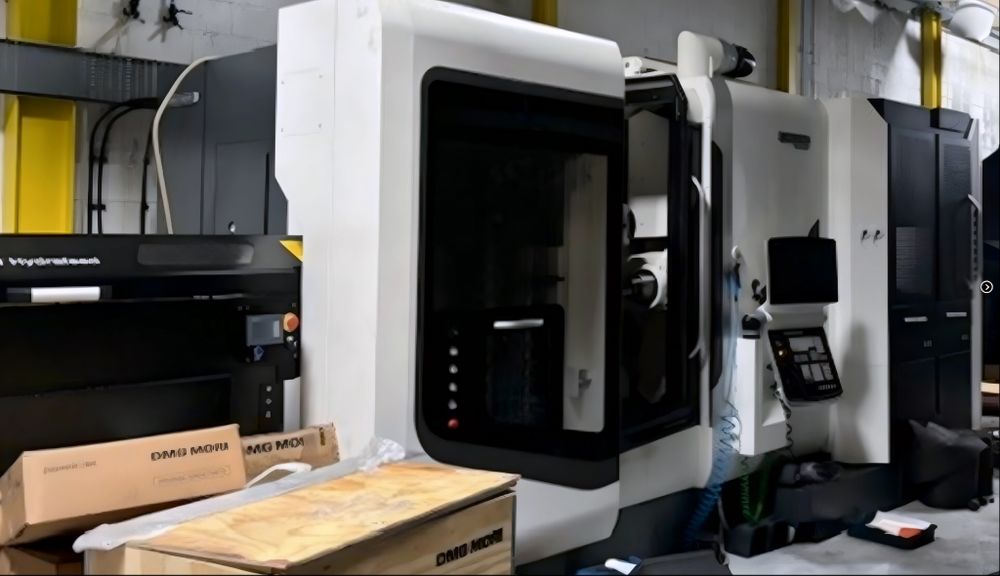

DMG Siemens 840D Solutionline 5000 rpm MORI NTX 1000 3 Axis

Y axis travel ±105 mm
B axis -30/+210°
C axis 0.001°

Control Siemens 840D Solutionline
High pressure coolant
Low voltage light
Through spindle coolant
Tool setter
Fume extractor
Swarf conveyor

Robot loader DMG Mori IMTR
Magazine barfeed
Manuals
Bar capacity 65 mm

Spindle speed 5000 rpm
Spindle motor power 22/18.5 kW
Sub spindle C axis 0.001°
Sub spindle speed 6000 rpm
Sub spindle motor power 22/18.5 kW
Milling motor power 11/7.5 kW
Milling RPM 12000 rpm

Lower turret 10 station
Lower turret milling motor 4.6/2.4 kW
Lower turret milling speed 10000 rpm

Tool change capacity 38 station
Number of axes controlled 9
Distance between spindles 800 mm
Machine weight 11500 kg
