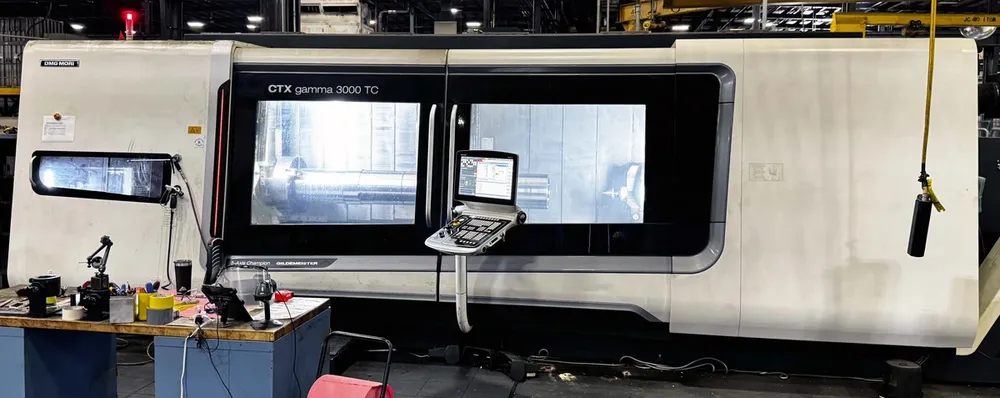

DMG Siemens ERGOLINE with CELOS 2500 RPM MORI CTX GAMMA 3000 TC 5 Axis

Rapid traverse X-axis: 1968 IPM
Rapid traverse Y-axis: 1968 IPM
Rapid traverse Z-axis: 1576 IPM
X-axis travel: 25.6 in
Y-axis travel: 15.7 in
Z-axis travel: 120 in
W-axis travel: 112.2 in
B-axis travel: ±120°
C-axis (main spindle)
C-axis (sub spindle)
5-axis simultaneous machining
Control: Siemens ERGOLINE with CELOS
Ethernet
USB
Spindle chiller
Paper filtration system
Chip conveyor
Humid environment AC system
Swing over bed: 27.6 in
Turning diameter: 27.6 in
Turning length: 120.1 in
Distance between spindles: 132.28 in
Bar capacity (main spindle): 5 in
Bar capacity (sub spindle): 4 in
Main spindle speed: 2500 RPM
Main spindle motor: 69.7 HP
Main spindle chuck: 20 in
Main spindle bore: 5.6 in
Sub spindle speed: 4000 RPM
Sub spindle motor: 60 HP
Sub spindle chuck: 20 in
Sub spindle bore: 4.6 in
Milling spindle speed: 12000 RPM
Milling spindle motor: 30 HP
Milling spindle taper: CAPTO C8
Tool magazine: 80 ATC
Maximum tool diameter: 3.14 in
Maximum tool diameter: 5 in
Maximum tool length: 21 in
Maximum tool weight: 26.4 lb
SMW Autoblok 3-jaw chucks
SMW Autoblok hydraulic steady rest
Machine weight: 66138 lb
