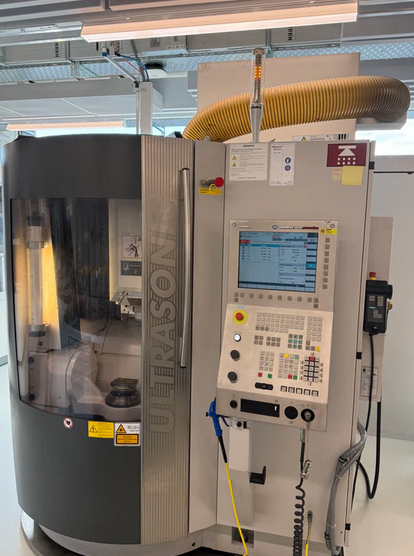

DMG ULTRASONIC 5 Axis

X-Axis Travel 120 mm
Y-Axis Travel 120 mm
Z-Axis Travel 200 mm
A-Axis Swivel -10 / +120°
C-Axis 360°
Rotary Table Diameter 190 mm
Max Table Load 10 kg
Control SIEMENS 840 D
Spindle Nose HSK 32
Spindle Speed 0–40,000 rpm stepless
Feed Range 10,000 mm/min
Rapid Traverse 10 m/min
Tool Magazine 60 positions
Max Tool Diameter 30 mm
Max Tool Length 130 mm
Chip-to-Chip Time 15 s
Voltage 3x400 V 50 Hz
Total Power 25 kW
Machine Weight 1,800 kg
Overall Length 2,400 mm
Overall Width 1,600 mm
Overall Height 1,900 mm
Zero-Point Clamping System EROWA
Set of Toolholders
Coolant System
Additional Coolant Filter
Coolant Through Spindle 40 bar
Touch Probe Renishaw
Linear Workpiece Magazine PH2/120
Oil Mist Extractor
Spindle Cooling
Laser Tool Measurement BLUM
Fire Extinguishing System
Switch Cabinet Air Conditioner
