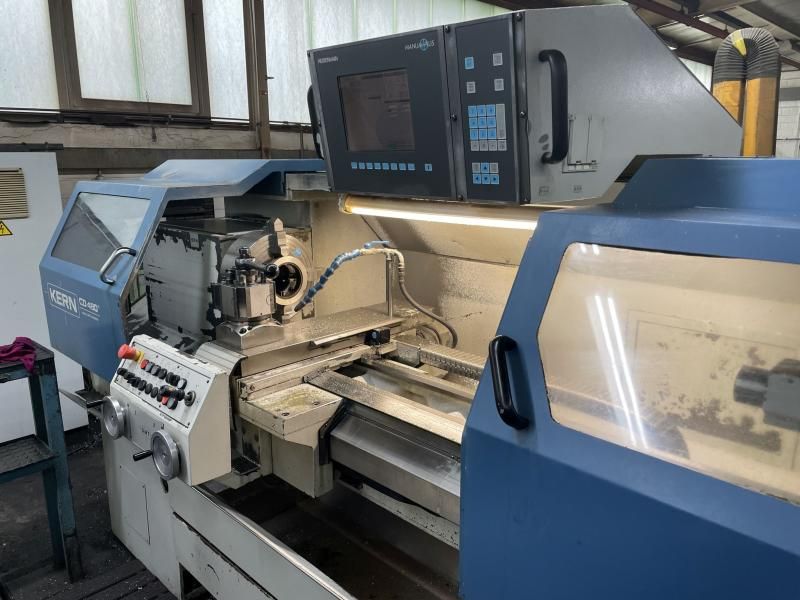

DMT Kern HEIDENHAIN Manual Plus 3000 RPM Drehtechnik CD 480 2 Axis

Z-axis travel: 1380 mm
X-axis travel: 260 mm
control type: CNC
control system: HEIDENHAIN Manual Plus
thread cutting function: Metric / Inch / Diametral / Module

spindle bore: 78 mm
spindle nose: DIN 55026 Size 6
spindle speed: 3000 RPM
spindle drive power: 18 kW (60% ED)

feed rate X-axis: 0.1 - 1000 mm/rev
feed rate Z-axis: 0.1 - 2000 mm/rev
rapid traverse X-axis: 5000 mm/min
rapid traverse Z-axis: 10000 mm/min

swing over bed: 480 mm
swing over cross slide: 260 mm
center height over bed: 240 mm
center height over cross slide: 130 mm
distance between centers: 1500 mm
tailstock quill diameter: 70 mm
tailstock quill stroke: 120 mm
tailstock taper: MK 5

power supply: 400 V / 50 Hz
connected load: 26 kW
machine dimensions: 3200 x 1500 x 2000 mm
electrical cabinet dimensions: 1200 x 500 x 1700 mm
machine weight including electrical cabinet: 3200 kg

cycle-controlled CNC lathe
PARAT quick-change toolpost size 3
3 quick-change tool holders
travelling steady rest
fixed steady rest
separate electrical cabinet
