DMT Kern Heidenhain Manuel Plus 3,000 rpm CD 322 2 Axis
Ref : 2726728-3-GO
Condition : Used
Manufacturer : DMT Kern
Controller : Heidenhain Manuel Plus
Spindle Speed : 3,000 rpm
Model : CD 322
Nb Of Axis : 2 Axis
Year(s) : 2004
Quantity : 1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)

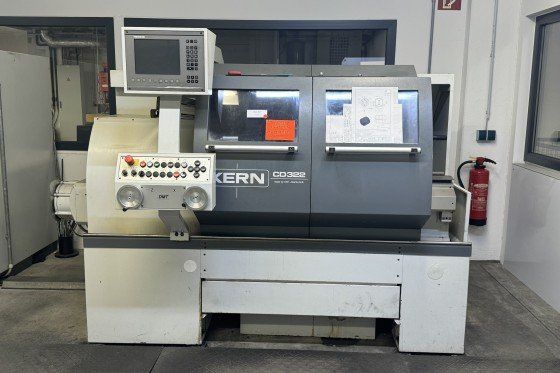

DMT Kern CD 322
2004
Swing over bed Ø: 320 mm
Swing over cross slide Ø: 150 mm
Turning Length (DBC): 750 mm
Spindle Bore: 52 mm
Spindle Power: 16 kW
Tailstock Spindle Ø: 60 mm
Tailstock Quill Stroke: 140 mm
Spindle Taper: Mk 4
Spindle Speed: 3,000 rpm
Feed Rate X‑Axis: 1,000 mm/min
Feed Rate Z‑Axis: 2,000 mm/min
Machine Length: 2,800 mm
Machine Width: 1,880 mm
Machine Height: 1,600 mm
Machine Weight: 2,200 kg
Control: Heidenhain Manuel Plus
Cycle Controlled Operation
Electronic Handwheel in Z & X Axes
Parat Tool Holder System
Three‑Jaw Chuck Capability
Covered Guidance Tracks (DGP)
Direct Drive Main Spindle
Oil Recirculating Lubrication with Filtering
Combined Control Unit for Manual, Cycle & CNC Modes
