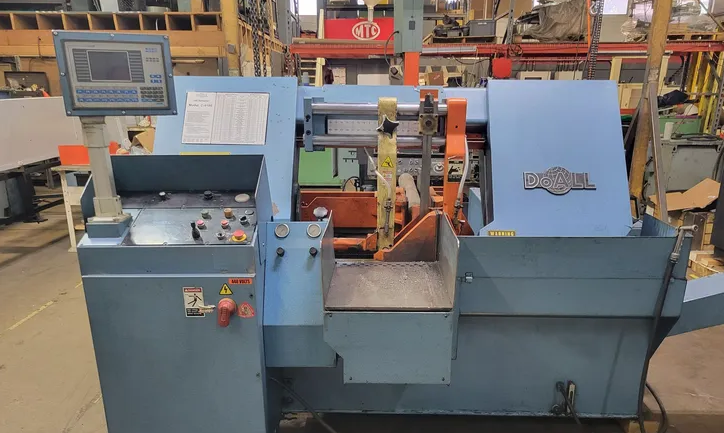

DoAll C-4100NC Band Saw CNC CONTROL

DOALL C-4100NC
Year: 2004

RECT-CAP (H) 14"
RECT-CAP (W) 16"
ROUNDS-CAP 16"
SQUARE-CAP 14"
POWER 10 hp

TYPE (AUTO, MANUAL, SEMI) Semi
BLADE WIDTH 1.5"
BLADE THICKNESS 0.05"
BLADE LENGTH 183"
CONTROL CNC (Doall NC)
DIMENSIONS 90" x 96" x 65" high
WEIGHT 6,800 lbs.

Specification :
Round Work Capacity 16" - Square Work Capacity 14" x 16"
Max Blade Size 1.5" x 186"
Blade Wheel Diameter 21"
Blade Speeds Variable 40 - 360 FPM
Stock Feed Shuttle Travel 24" Single Stroke / 999" Multiple Index Number of Shuttle Indexes
Drive Motor 10 HP
Coolant Capacity 20 Gallons
24" Stroking Stock Shuttle Vise Front Hydraulic Vise
Hydraulic Band Tensioning with Controls
12" Long Parts Drop Table
Chip Conveyor
Coolant System
Work Light
Electrics:460 Volt, 3 Phase, @00 volt available for extra charge
Approximate Machine Wt. 7,200LBS
