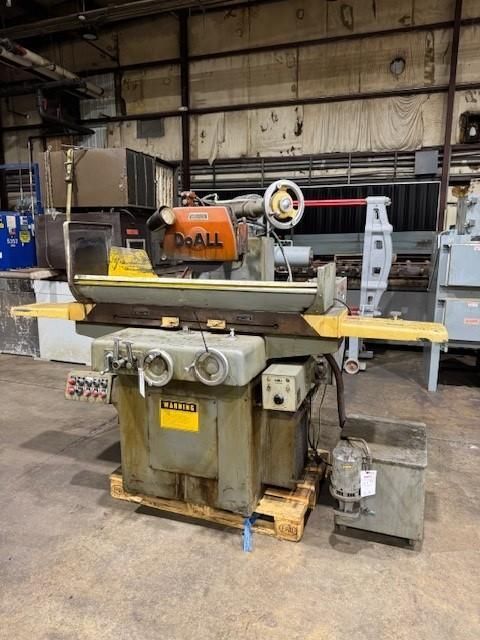

DoAll D1030-14

TABLE DIMENSIONS: 30" X 10" X 3"
CROSS TABLE TRAVEL: 12 inches
MAXIMUM UNDER WHEEL: 10.5 inches
GRINDING WHEEL DIAMETER: 14" X 1" X 3"
CHUCK MAGNALOCK FINE LINE: 10" X 30" X 3"
MAGNETIC CHUCK CONTROL: VARIABLE
LONGITUDINAL TABLE SPEEDS: 5 TO 50 FPM
AUTO TRANSVERSE FEEDS: 0.005 TO 0.1875 IPM
VERTICAL HAND WHEEL ADJ: 0.0001 inches
POWER ELEVATION: yes
COOLANT: yes
OVERHEAD WHEEL DRESSER: yes
SPINDLE MOTOR: 5 HORSEPOWER
HYDRAULIC MOTOR: 1-1/2 HORSEPOWER
