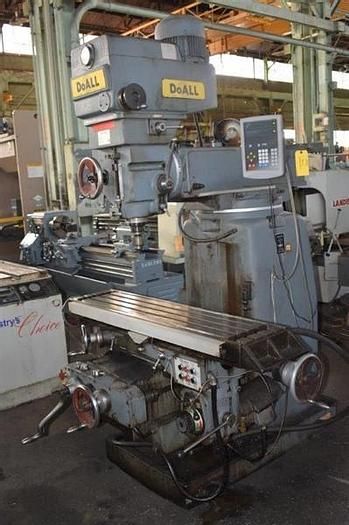

DoAll FV-4V VERTICAL 4150 RPM

Table working surface 12" x 52.75"
Table longitudinal travel (X-axis) 31.5"
Saddle cross travel (Y-axis) 15.75"
Knee vertical travel (Z-axis) 17.62"
Quill travel 6"
Spindle nose to table minimum 0"
Spindle nose to table maximum 17.625"
Throat distance minimum 6.31"
Throat distance maximum 31.5"
Workpiece load capacity maximum 1500 lbs
Quill diameter 3.375"
Spindle taper #NS40
Spindle-head longitudinal swivel 180 degrees
Spindle speeds infinitely variable 60 to 4150 RPM
Quill feeds range .003 to .006 IPR
Longitudinal and cross feeds 0.5 to 20.875 IPM
Vertical knee feeds range 0.25 to 10.5 IPM
Spindle motor 4 HP
Feed motor 1.5 HP
Weight approximately 4900 lbs
C80 Newall digital readouts
Infinitely variable speed spindle
Power feed to table, quill, saddle, and knee
