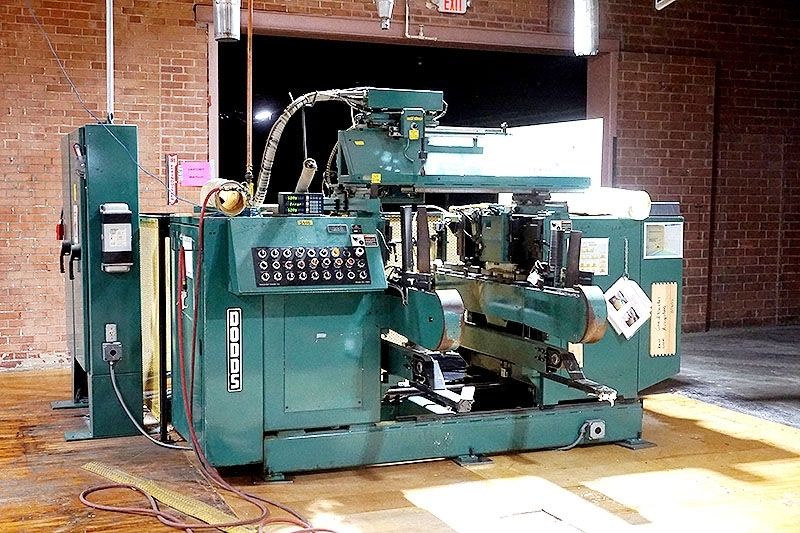

Dodds DE-760H

Double End CNC Automatic English Drawer Dovetailer With Notching
Product length (left to right) 7-3/4" to 36"
(7-3/4" length must be 6" wide for processing)
Product depth (front to back) 1-3/4" to 12"
Product thickness 5/16" to 3/4"
Machine foot print 10' wide x 9'-4" long (suggested area 16' x 14')
Double end machine design
The machine process (2) matching drawer sides at one time
Infeed gravity hopper part feeder arms
Feed through drive chain with push type feeder dogs
Pneumatic stock clamping at process station
1st station: (right and left hand) 15 spindle dovetailer heads
1" spindle centers machines english type dovetails
Automatic CNC control of spindle heads
7-1/2 Hp, 230/460 volt three phase spindle drive motors
Oil mist spindle lubrication system
Enclosed machine area with side access doors
2nd station: overhead mounted drawer notching head
Automatic part advancement with conveyorized part return to the front of the machine
Front left hand operator control station
Sony DRO display
Push button/flip switch master machine controls
Freestanding electrical control cabinet
