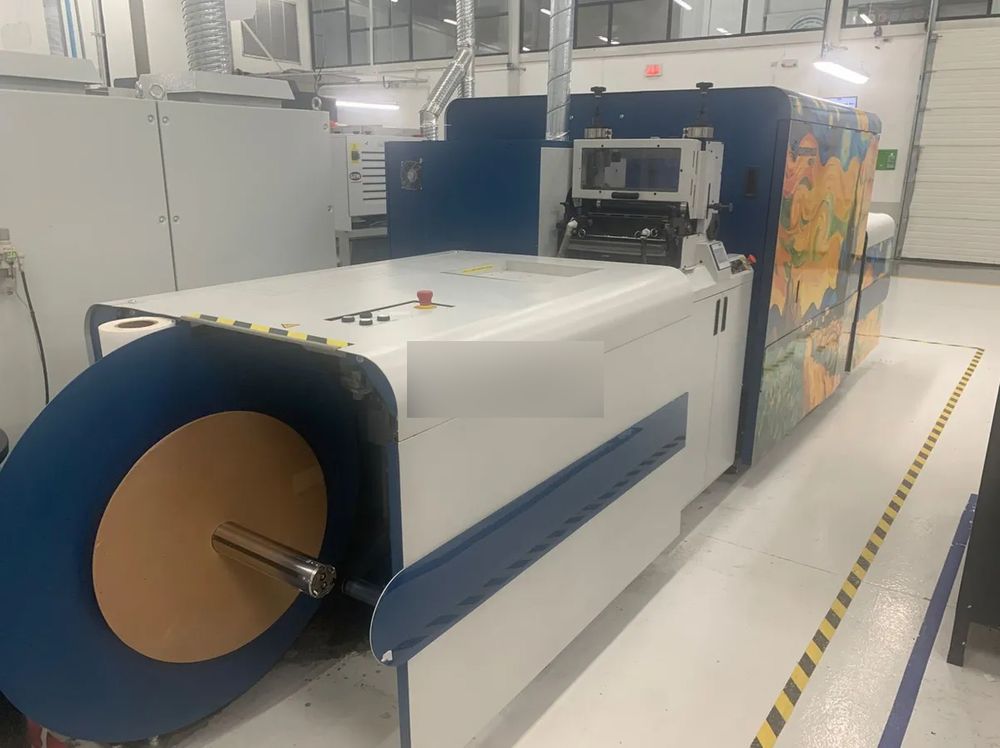

Domino N610i 7 13''

Used DIGITAL PRESS
Width 13
Colors 7
Corona Treater Yes
Type of Drying UV
Web Guide YES
Weight 6725
380-420V, 3PH

Printing Speed :
• Up to S0m/min ( I 64ft/min) High Quality Mode
• Up to 75m/min (246ft/min) Rapid Mode

Image Resolution
• 600dpi native including 4 greyscales (nominal I 3 40dpi)
Image Format
• 333 mm ( 13.1 I ") maximum print width
Web Width
• 200mm (7.9") to 3 40mm ( 13.4")
Media Type
• Polyethylene, polypropylene and paper self adhesive label stock
• Selected unsupported materials (films)
Inks
• UV curable Cyan, Magenta.Yellow, Black, Orange.Violet and White
Unwind/Rewind
• 1 000mm (40") diameter
• Maximum roll weight 3 00kg (661 lbs)
• Servo driven tension control
• Corona treatment module
• Web cleaning
• Web guide module
Workflow
• ESKO DFE v2.0
• Domino ScreenPro & ScreenPro HS
Central Print Module
• Anti-static control
• Up to 7 colour print section
• UV LED pinning
• UV curing module

Options :
• In-line finishing interface
• In-line inspection
• Variable data printing
• Chilled roller
