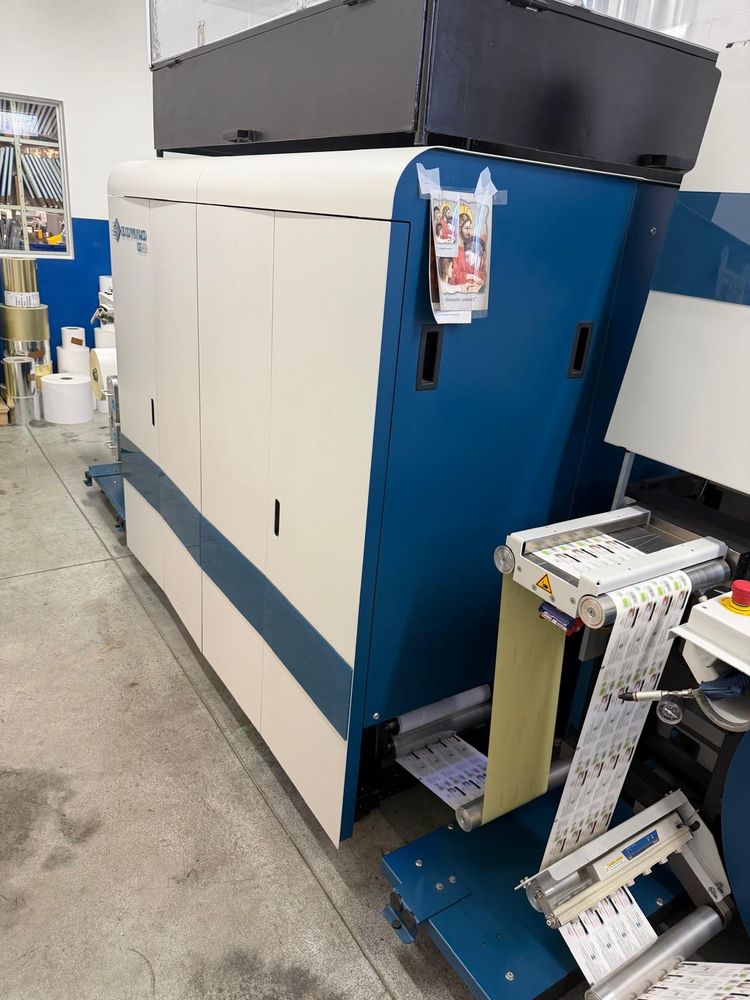

Domino N610i 7 333 mm

DIGITAL UV INKJET LABEL PRESS (Up to 7 colors including high-opacity white)
High-resolution digital UV inkjet system for professional label converting Up to 7 colors (CMYK + White + White) 600 dpi native resolution with 4 greyscales (nominal 1.340 dpi)
Printing speeds up to 75 m/min
Wide substrate compatibility: paper, PET, PP, PE
Designed for industrial, household, personal care, automotive, chemical, pharmaceutical, food and beverage applications
Short job setup times and consistent print quality Robust Domino build quality and worldwide support 2.

MACHINE DATA :
Specification Details : Technology UV Inkjet
Year of Manufacture September 2018 First Installation February 2019
Operating Hours 6,110 hrs (status November 2025)
Installed Colours CMYK + White + White (6 channels active)
Print Resolution 600 dpi native incl. 4 greyscales (nominal 1.340 dpi)
Printing Speed Up to 75 m/min
Web Width Up to 340 mm
Print Width Up to 333 mm
Printheads 18 Kyocera Micro-Piezo printheads (4 replaced in 2025)
Ink Type UV curable inks Drying System
Integrated UV curing units
Substrate Compatibility Paper, PET, PP, PE Digital Front-End ESKO RIP Version 2.2 Unwind Unit Max. 1.000 mm
Rewind Unit Max. 1.000 mm
Machine Dimensions W 570 cm D 200 cm • H 180 cm
Ink Cabinet Dimensions W 120 cm • D 52 cm • H 81 cm
Production Status Machine currently in production
Availability Expected end of February 2026 3.

INCLUDED COMPONENTS :
Domino N610i print engine with 18 Kyocera Micro-Piezo printheads UV curing system
Unwind unit (Ø 1.000 mm) Rewind unit (Ø 1.000 mm)
Vetaphone corona treatment module Web guide module
Web cleaning system
Anti-static control Digital front-end with ESKO RIP v2.2 Color control system
Remote diagnostics & support capability
Ink cabinet Complete operator workstation
All components in “AS IS” running condition
