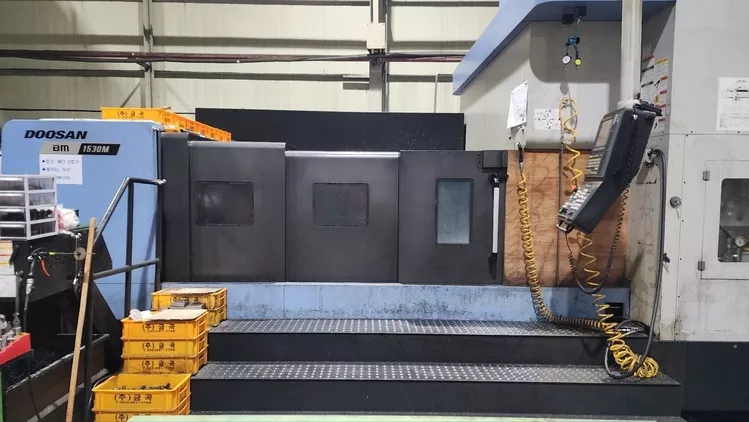

Doosan BM1530M 3 Axis

DOOSAN BM1530M
2015

Number of tables 1
Table size width 53.1"
Table size length 118.1"
Table load capacity 17,636 lb
Distance between columns 66.9"
Spindle nose to table top 7.9" - 39.4"
X-axis travel 118.1"
Y-axis travel 61"
Z-axis travel 31.5"
Rapid traverse rate X 629 in/min
Rapid traverse rate Y 629 ipm
Rapid traverse rate Z 629 ipm
Spindle speed 12,000 RPM
Spindle taper 50
Main motor 40 hp
Automatic tool changer 40 positions
Tool diameter 4.9" / 8.7"
Tool length 15.7"
Tool weight 44.1 lb
Machine weight 66,934 lb
Control CNC
Dimensions 187.8" H x 175.2" W x 342" L
FANUC SERIES 31I-B CNC control
Chip conveyor
XYZ scales
Splash guard with top cover
Rigid tapping
