Doosan CNC control FANUC 21 i TB 3000 rpm PUMA 700 LM 2 Axis

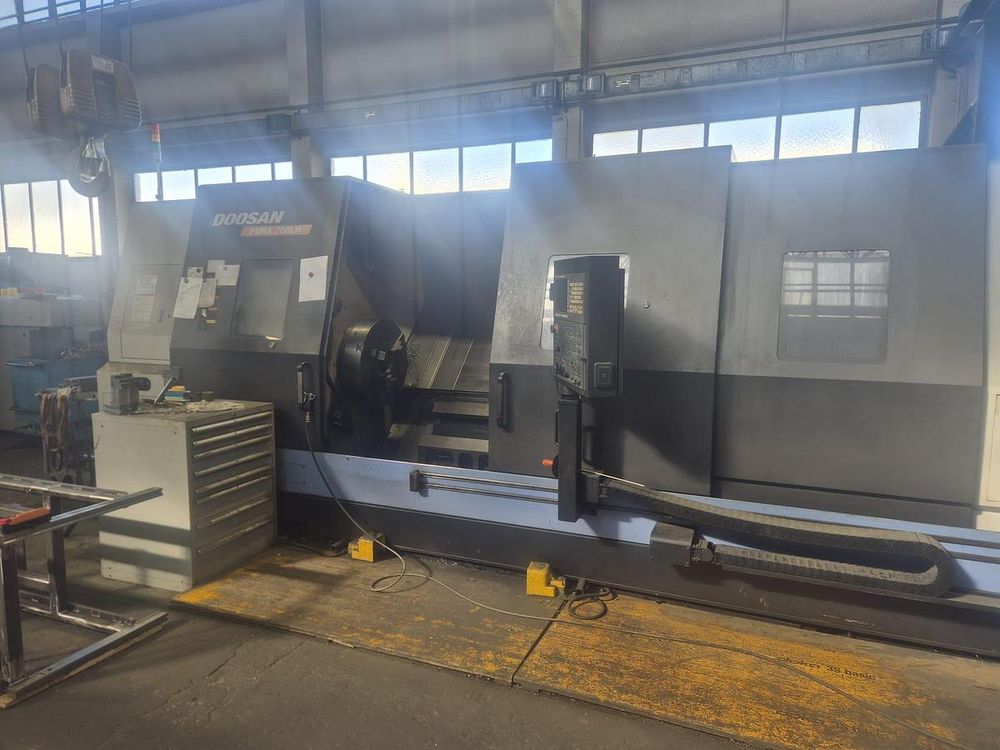

CNC lathe DOOSAN PUMA 700 LM
Year of manufacture 2011

CNC control FANUC 21 i TB
Turning diameter 900 mm
Turning length 2000 mm
Turning diameter 1030 mm
Standard turning diameter 750 mm
Bar stock diameter 165 mm
Spindle bore 110 mm
X-axis travel 471 mm
Z-axis travel 2100 mm
Rapid traverse - longitudinal/transverse 15/20 m/min
Spindle speed 3000 rpm
Spindle drive 45 kW
Turret stations / tool turning stations 12 / 6 BMT 85
Speed of driven tools 3000 rpm
Total power requirement 62.2 kVA

Machine weight approx. 22.2 t
Machine dimensions Approx. 7.1 x 2.2 x 2.2 m

Additional Equipment
12-station tool turret (all driven)
Hydraulic tailstock
Sandvik Capto C6 tool holders (4 pieces)
SMW Autoblok hydraulic lathe chuck 630 mm
Hydraulic steady rest (min. 110 mm, max. 530 mm)
