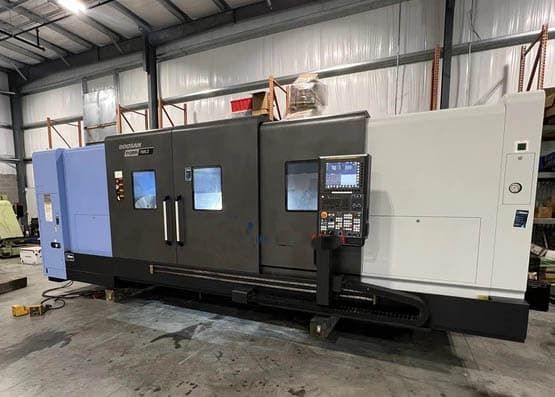

Doosan CNC Fanuc 32i-B 1,500 rpm Puma 700L-II 2 Axis

X-Axis Travel: 470 mm (18.5″)
Z-Axis Travel: 3,235 mm (127.3″)
Swing Over Bed: 1,030 mm (40.55″)
Swing Over Carriage: 800 mm (31.5″)
Maximum Turning Diameter: 900 mm (35.4″)
Maximum Turning Length: 3,200 mm (126″)
Distance Between Spindle Nose and Tailstock Center: 3,600 mm (141.7″)
Spindle Speed: 1,500 rpm
Spindle Nose: A1-15
Draw Tube ID: 166.5 mm (6.55″)
Spindle Bore Diameter: 181 mm (7.12″)
Spindle Drive Motor: AC 45 kW (60 hp) S6 60%
Spindle Speed Ranges: 3
Maximum Spindle Torque: 6,605 Nm (4,873 ft-lb)
X-Axis Rapid Traverse Rate: 12 m/min (472 ipm)
Z-Axis Rapid Traverse Rate: 10 m/min (394 ipm)
X-Axis Ball Screw Diameter: 50 mm (2.0″)
Z-Axis Ball Screw Diameter: 63 mm (2.5″)
X-Axis Feed Thrust (Continuous): 15,517 N (3,488 lb)
X-Axis Feed Thrust (Intermittent): 21,724 N (4,884 lb)
Z-Axis Feed Thrust (Continuous): 29,981 N (6,740 lb)
Z-Axis Feed Thrust (Intermittent): 38,975 N (8,762 lb)
X-Axis Repeatability: ±0.002 mm (±0.00008″)
Z-Axis Repeatability: ±0.003 mm (±0.00012″)
Turret Number of Tools: 12
Turret Tool Holder Type: DI Base Holder
Turning Tool Shank Size: 32 mm (1.25″)
Boring Bar Diameter: 80 mm (3.0″)
Turret Index Time: 0.25 second
Tool Selection: Bi-directional
Curvic Coupling Diameter: 400 mm (15.75″)
Turret Clamping Force: 177 kN (39,790 lb)
Turret Index Repeatability: ±0.0005 degree
Tailstock Center: MT #6 built-in dead
Tailstock Quill Diameter: 160 mm (6.3″)
Tailstock Quill Stroke: 150 mm (5.9″)
Tailstock Body Stroke: 3,135 mm (123.4″)
Maximum Tailstock Quill Thrust: 32 kN (7,150 lb)
Maximum Tailstock Hydraulic Pressure: 40 bar (580 psi)
Tailstock Guide Way Span: 390 mm (15.3″)
Coolant Pump Pressure: 4.5 bar (65 psi)
Coolant Pump Motor: 0.75 kW (1.0 hp)
Coolant Tank Capacity: 560 l (150 gal)
Hydraulic Tank Capacity: 66 l (17 gal)
Way Lubrication Tank Capacity: 4.3 l (1.1 gal)
Machine Weight: 21,800 kg (48,100 lb)
Floor Space – Length x Width: 7,360 mm x 2,766 mm (290″ x 109″)
Floor Space with Hinge Belt Chip Conveyor: 8,470 mm (334″)
Machine Height: 2,590 mm (102″)
Height from Floor to Spindle Center: 1,220 mm (48″)
Voltage Required: 205-235V / 3 ph / 60 Hz
Power Requirement: 65 kVA (170 Amps @ 220 Volts)
Control: CNC Fanuc 32i-B
Programmable High/Low Chucking Pressure
One-Piece 45-Degree Torque-Tube Slant Bed
Isolated 3-Speed Gearbox
Solid Box Way Construction
Fluoroplastic Anti-Friction Mating Way Surface
Unexpected Disturbance Torque Detection Function
FANUC 0i-Plus Control with iHMi Touch Screen Interface with Swiveling Operator’s Panel
EZ Guide I Conversational Programming
Tool Load Monitoring System
4.5 bar (65 psi) Coolant System
