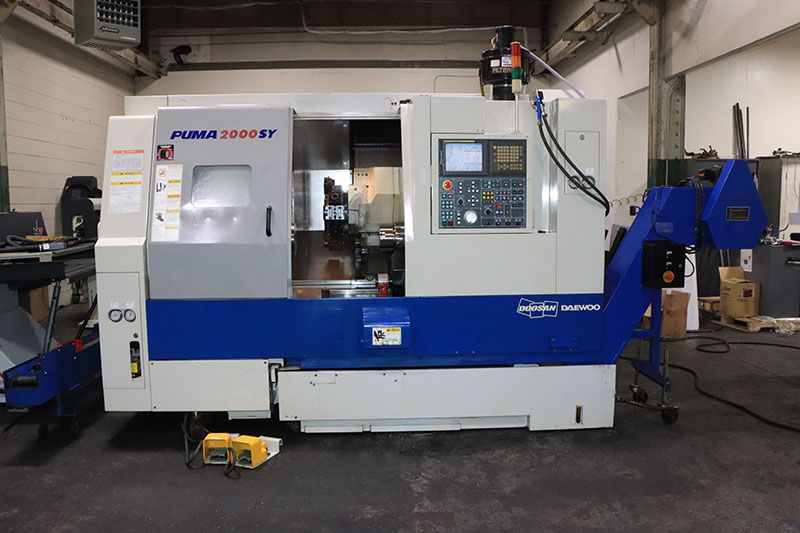

Daewoo, Doosan Fanuc 18i-TB CNC 4,500 rpm PUMA 2000SY 5 Axis

X-axis travel: 9.8 in
Z-axis travel: 22.8 in
Y-axis travel: 3.94 in
Rapid traverse X-axis: 788 ipm
Rapid traverse Z-axis: 945 ipm
Rapid traverse Y-axis: 295 ipm
B-axis travel: 22.8 in
C-axis on main spindle
C-axis on sub spindle
Minimum programmable C-axis angle: 0.001°
Control: Fanuc 18i-TB CNC
Tool setter
Parts catcher
Parts conveyor
Chip conveyor
Magazine bar feeder
5 live toolholders
Static toolholders
Bar capacity: 2.6 in
Swing over bed: 23.6 in
Swing over carriage: 21.6 in
Maximum turning diameter: 13 in
Maximum turning length: 20.1 in
Main spindle speed: 4,500 rpm
Main spindle motor: 20 hp
Main spindle nose: A2-6
Main spindle bore: 2.99 in
Main spindle draw tube ID: 2.6 in
Sub spindle speed: 6,000 rpm
Sub spindle motor: 10 hp
Sub spindle nose: A2-5
Sub spindle bore: 1.77 in
Sub spindle draw tube ID: 1.38 in
Live tool speed: 6,000 rpm
Live tool motor: 7.5 hp
Collet type: ER25
Collet capacity: 1/16–5/8 in
12-station turret
Turning tool shank: 1 in
Main spindle boring bar capacity: 1.5 in
Sub spindle boring bar capacity: 0.75 in
8 in 3-jaw chuck
6 in 3-jaw chuck
Coolant pressure: 65 psi
Coolant tank capacity: 39 gal
Hydraulic tank capacity: 2.6 gal
Machine dimensions: 123 × 67 in
Machine weight: 11,500 lb
