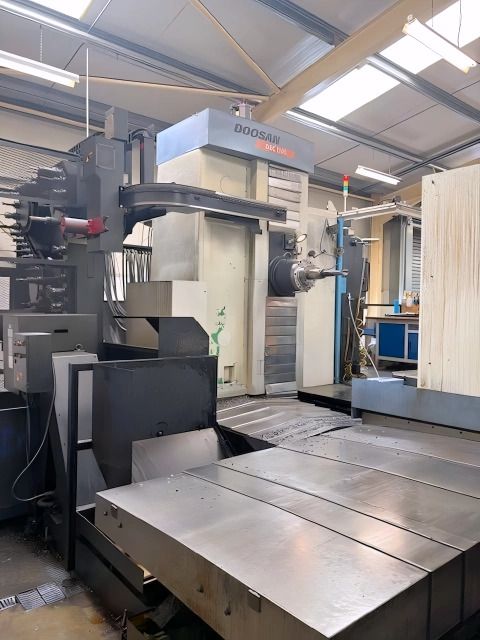

Doosan DBC 110S 110mm 3000 rpm

Travels (X/Y/Z): 2000 x 1500 x 1200mm
W Axis: 500mm
B Axis: 1°

Distance spindle nose to table centre: 550–1750mm
Distance spindle nose to table top: 0–1500mm
Maximum cutting feedrate: 6 m/min
Rapid feedrates (W/X/Y/Z): 6 x 12 x 12 x 12 m/min
Control: FANUC 32i-Model A
Swing: 2550mm
Spindle diameter: 110mm
Spindle speed: 3000 rpm
Spindle motor power: 26/22 kW
Table size: 1400 x 1600mm
Maximum workpiece weight: 7000kg
Maximum tool diameter: 250mm
Maximum tool length: 600mm
Maximum tool weight: 30kg
Tool size: BT50
Tool change capacity: 60 station
Machine dimensions: 5540 x 5930 x 4200mm
Machine weight: 29000kg

Features / Equipment
Angle head
B axis
Coolant
Interlocked guards
Low voltage light
Spindle probe
Swarf conveyor
Through spindle coolant
Tool setter
