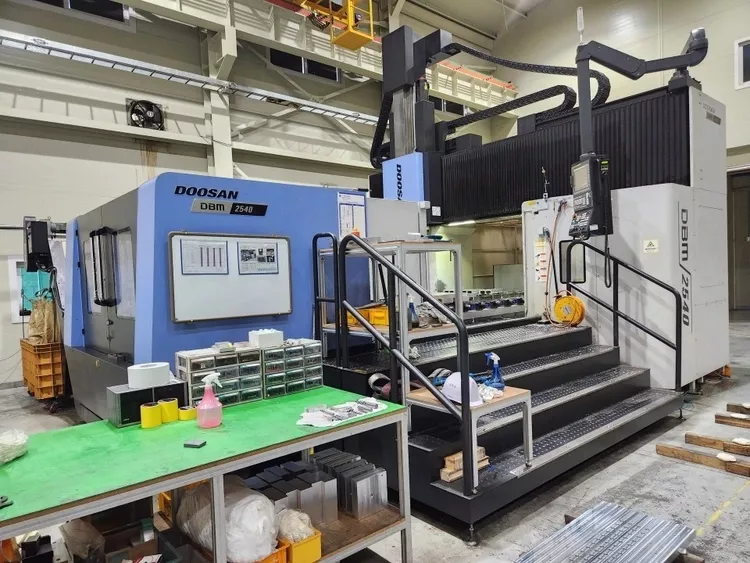

Doosan DBM-2540 3 Axis

Ref : 2727916-3-AW
Condition : Used
Manufacturer : Doosan
Model : DBM-2540
Nb Of Axis : 3 Axis
Year(s) : 2019
Quantity : 1
Location : Seller or machines location:
AMERICA North (USA-Canada-Mexico)

DOOSAN DBM-2540
2019

Number of tables 1
Table size width 78.7"
Table size length 157.5"
Table load capacity 44,091 lb
Distance between columns 98.4"
Spindle nose to table top 39.4"
X-axis travel 167.3"
Y-axis travel 118.13"
Z-axis travel 31.5"
Rapid traverse rate X 787 in/min
Rapid traverse rate Y 787 ipm
Rapid traverse rate Z 787 ipm
Cutting feedrate 394 in/min
Spindle speed 8,000 RPM
Spindle taper 50
Main motor 73.8 hp
Automatic tool changer 60 positions
Tool diameter 5.1" / 9.8"
Tool length 15.7"
Tool weight 66 lb
Machine weight 92,593 lb
Dimensions 293" L x 433" W x 224" H
FANUC 31IB CNC control
Chip conveyor
DSQ 2
Renishaw tool length measurement
20 bar through spindle coolant
8MB part program memory
AAC (Swing 2 Station)
90 degree angle head 6000 RPM
Scales X, Y, Z1, Z2
Semi cover top
