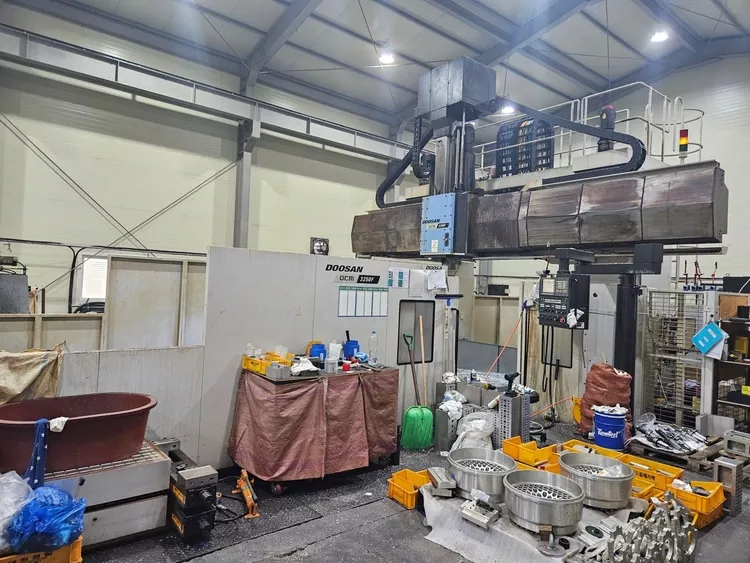

Doosan DCM 3250F 5 Axis

X-axis travel 206.7"
Y-axis travel 145.7"
Z-axis travel 39.4"
W-axis positions 43.3"
B-axis indexing 1°

Rapid traverse rate X 629.9 ipm
Rapid traverse rate Y 787.4 ipm
Rapid traverse rate Z 590.6 ipm
Cutting feedrate 393.7 ipm
FANUC 31iB CNC control
90° angle head (1°)
400mm extension
3 AAC
Thru spindle coolant
TS27R tool setter
Semi cover
Chip conveyor
Spindle speed 6,000 RPM
Spindle taper #50
Main motor 29.5 hp
Automatic tool changer 90

Tool diameter 5.1" / 9.8"
Tool length 15.7"
Tool weight 66.1 lb
Number of tables 1
Table size W 106.3"
Table size L 200.8"

Table load capacity 72,751.5 lb
Distance between columns 126"
Spindle nose to table top 78.7"
Machine weight 180,777 lb
Dimensions 324" x 527" x 264"
