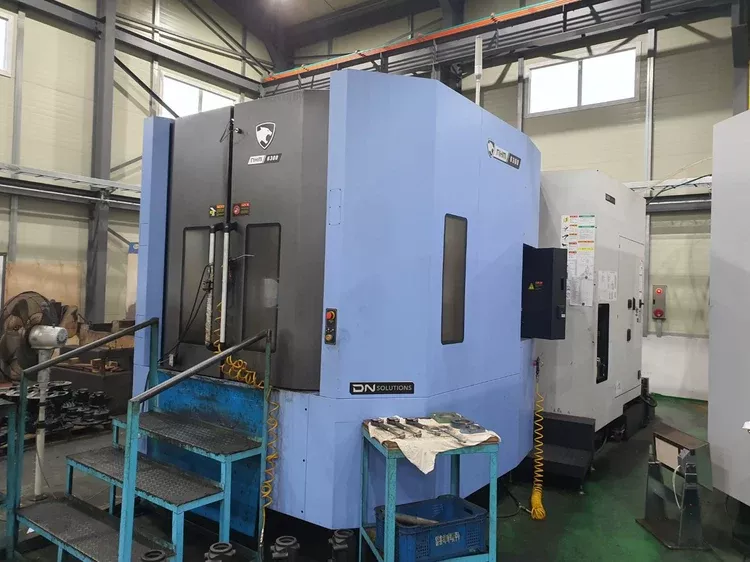

Doosan DN SOLUTIONS NHM 6300 4 Axis

DN SOLUTIONS NHM 6300
Year: 2022

Pallet Size: 24.8" x 24.8"
Number Of Pallets: 2
Pallet Weight Capacity: 3,307 LBS.
Spindle Nose To Table Center: 3.9" ~ 43.3"
Spindle Center To Table Top: 3.0" ~ 38.4"
Workpiece Dimensions: 41.3" x 53.1" (H)
X - Axis Travel: 41.3"
Y - Axis Travel: 35.4"
Z - Axis Travel: 39.4"
B - Axis Travel: 1 DEGREE
Rapid Traverse Rates X, Y, Z: 1968, 1968, 1968 IPM
Rapid Traverse Rate B Axis: 0
Cutting Feed Rate: 0
Spindle Speed: 6000 RPM
Spindle Taper: 50
Number Of Ranges: 3
Main Motor: 50 HP
Automatic Tool Changer: 60 ATC
Tool Diameter: 4.9", 12.6"
Tool Length: 27.6"
Tool Weight: 55.1 lbs.
Tool Change Time: 0
Machine Weight: 39,700 LBS.

FANUC 31IB CNC CONTROL
THRU SPINDLE COOLANT
CHIP CONVEYOR
SPINDLE CHILLER
FLOOD & FLUSHING COOLANT
PCMCIA CARD SLOT
USB PORT
RIGID TAPPING
CUSTOM MACRO
