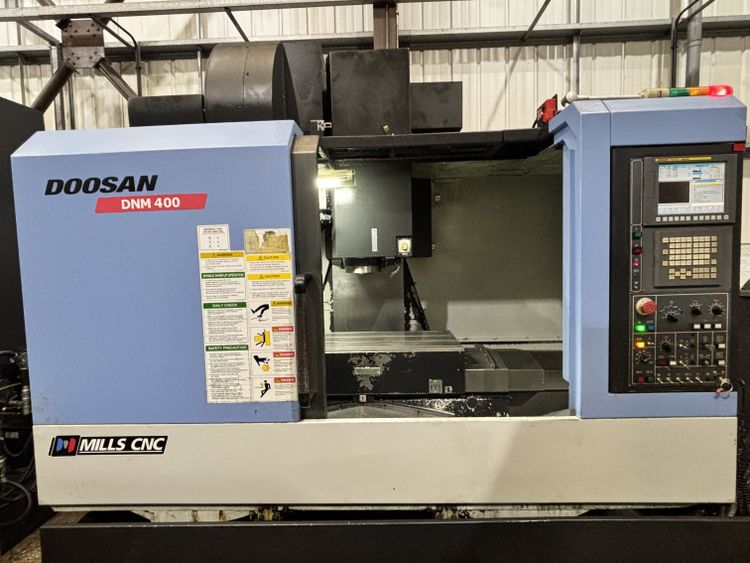

Doosan DNM 400 3 Axis

Ref : 2717117-3-GO

Condition : Used

Manufacturer : Doosan

Model : DNM 400

Nb Of Axis : 3 Axis

Year(s) : 2011

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Doosan DNM 400
2011

Coolant, Interlocked guards, Low Volt Light
Remote Hand Wheel, Swarf Conveyor, Through Spindle Coolant
ControlFANUC 0i
Cutting Speed15m/minute
Distance from Spindle Centre to Column512mm
Machine Dimensions3615 x 2615 x 2703mm
Machine Weight5000kg
Maximum Tool Diameter80mm (125mm without Adjacent Tools)
Maximum Tool Length300mm
Maximum Tool Weight8kg
Maximum workpiece weight600kg
Min - Max Height under Spindle150 - 660mm
Rapid FeedratesXYZ: 36 x 36 x 30m/minute
Repeatability36
Spindle Motor Power15/11kW
Spindle Speed12000rpm
Table Size920 x 435mm
Tool Change Capacity30 Station
Tool Change Time (Chip to Chip)3.7kg
Tool SizeBT40
Traverses XYZ762 x 435 x 510mm
