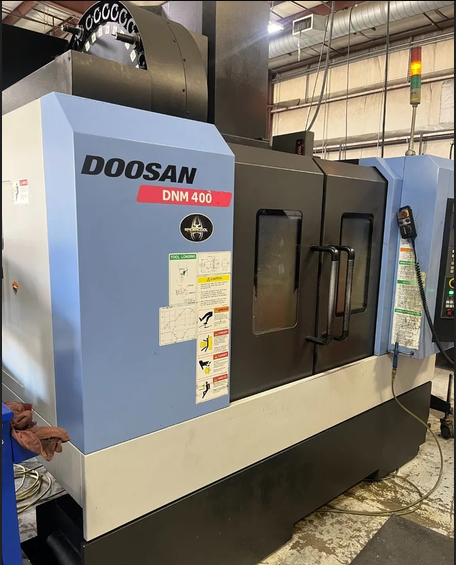

Doosan DNM 400 3 Axis

X-axis travel: 762 mm
Y-axis travel: 435 mm
Z-axis travel: 510 mm
Control: Fanuc Oi-MD CNC
Through-spindle coolant
Programmable coolant system
Spindle probe ready (probe not included)
Remote jog handwheel
Oil jacket spindle chiller
Air through spindle
Big Plus spindle system
Rigid tapping
Custom Macro B
AI APC (15-block look-ahead)
Portable manual pulse generator
Oil skimmer
Metered lubrication system
Table size: 920 × 435 mm
Maximum table load: 600 kg
T-slot: 4 × 125 mm × 18H8
Spindle speed: 8000 rpm
Spindle motor: 20 hp (15 kW)
Spindle torque: 210 Nm
Spindle taper: CAT 40
Spindle nose to table: 150–660 mm
Column to spindle center: 512 mm
Rapid traverse: 36 m/min
Automatic tool changer: 30 positions
Maximum tool diameter: 80/125 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Side-mount tool changer
Chip conveyor
Screw conveyors
Flood coolant system
Coolant tank
Full enclosure
Telescopic covers
Work light
3-color tower signal light
Machine dimensions: 2078 × 2615 × 2711 mm
Weight: 5500 kg
