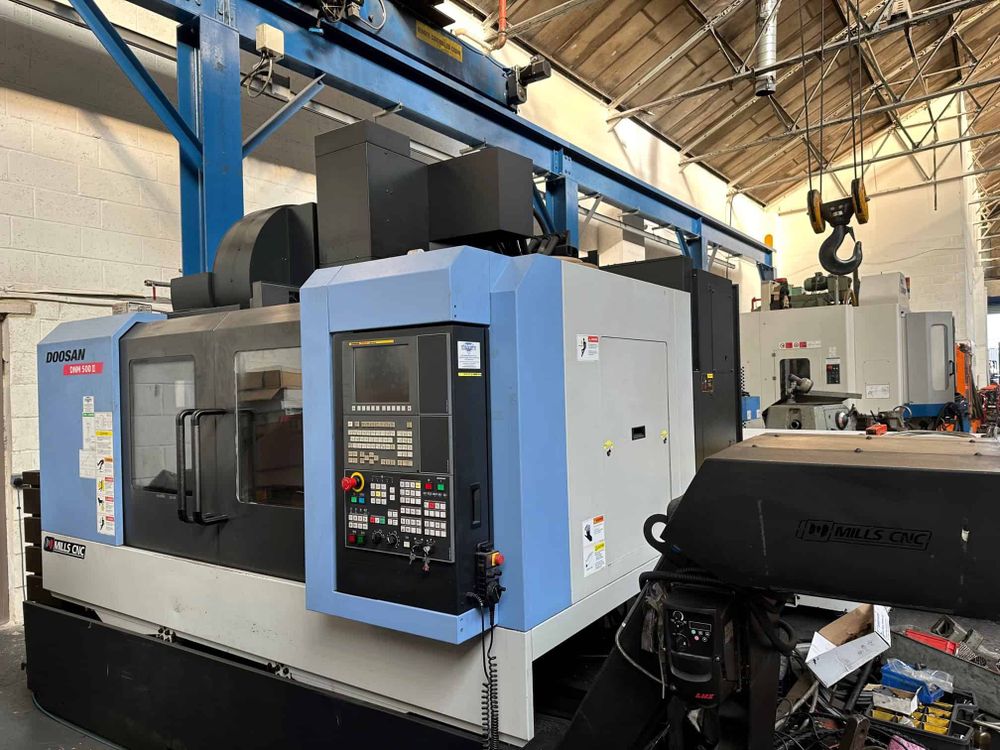

Doosan DNM 500 II 3 Axis

Doosan DNM 500 II

Machine Travel X: 1,020 mm
Machine Travel Y: 540 mm
Machine Travel Z: 510 mm
X Axis Rapid Traverse: 36 m/min
Y Axis Rapid Traverse: 36 m/min
Z Axis Rapid Traverse: 30 m/min
Maximum Spindle Speed: 12,000 rpm
Maximum Spindle Power: 18.5 kW
Maximum Spindle Torque: 353.2 N·m
Table Length: 1,200 mm
Table Width: 540 mm
Maximum Table Load: 800 kg
Tool Stations: 30
Machine Length: 2,412 mm
Machine Width: 3,110 mm
Machine Height: 3,143 mm
Weight: 6,500 kg
Spindle Nose: MAS BT‑40
Feed Range: 1–15,000 mm/min
Control: Fanuc Doosan I Series
Renishaw Touch Probe
4th Axis Ready
