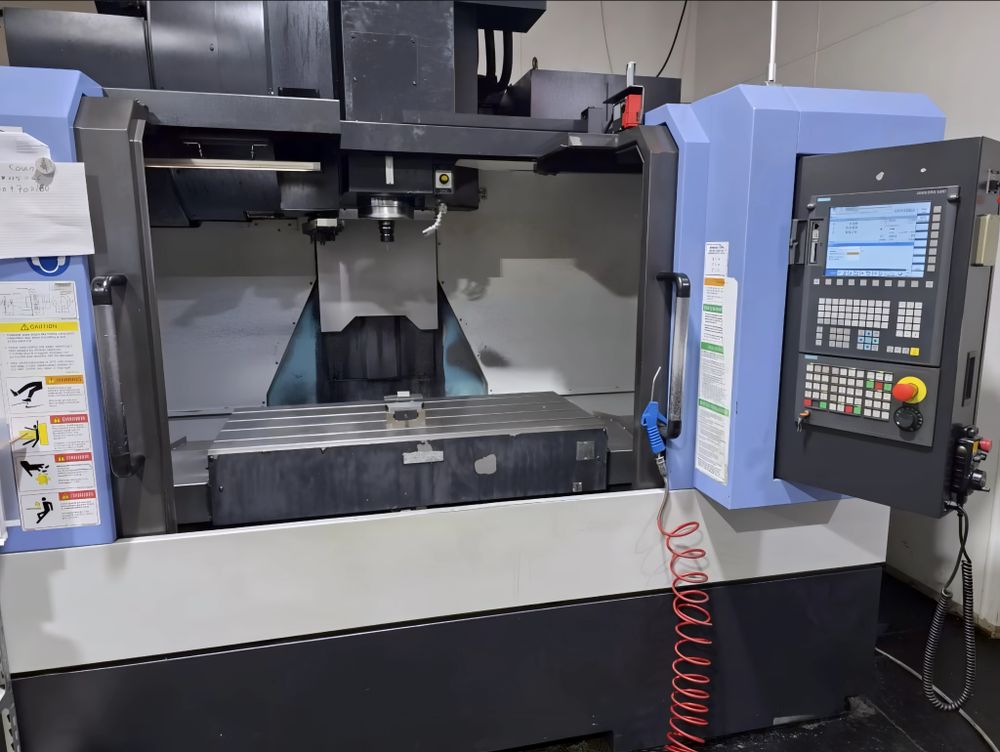

Doosan DNM 500II 3 Axis

travel X axis 1020 mm
travel Y axis 510 mm
travel Z axis 520 mm
rapid traverse X 36 m/min
rapid traverse Y 36 m/min
rapid traverse Z 30 m/min
control Siemens 828
coolant
interlocked guards
low voltage light
manuals
remote hand wheel
swarf conveyor
through spindle coolant
USB port
spindle motor 15 kW
spindle speed 12000 rpm
tool holder BT40
tool capacity 30 station
tool change time 3.7 sec
maximum tool length 300 mm
maximum workpiece weight 800 kg
min. max. height under spindle 150 - 660 mm
table size 1200 x 540 mm
machine dimensions 3444 x 2960 x 2703 mm
machine weight 6500 kg
