Doosan DNM 650 3 Axis

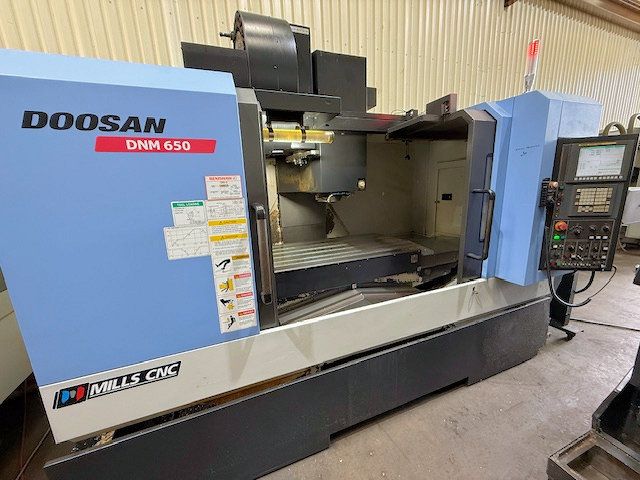

DOOSAN DNM 650
2013

Control: FANUC Oi
Distance from spindle center to column: 747 mm
Machine dimensions: 4345 mm x 2720 mm x 2815 mm
Machine weight: 8500 kg
Maximum tool diameter: 80 mm
Maximum tool diameter without adjacent tools: 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Maximum workpiece weight: 1000 kg
Minimum height under spindle: 150 mm
Maximum height under spindle: 775 mm
Rapid feedrate X-axis: 36 m/min
Rapid feedrate Y-axis: 36 m/min
Rapid feedrate Z-axis: 30 m/min
Spindle motor power: 15 kW
Spindle speed: 12000 RPM
T-slots: 5 x 18 mm at 125 mm centers
Table size: 1300 mm x 670 mm
Through spindle coolant pressure: 70 bar
Tool change capacity: 30
Tool change time (chip to chip): 3.7 seconds
Tool size: BT40
Traverse X-axis: 1270 mm
Traverse Y-axis: 670 mm
Traverse Z-axis: 625 mm

Coolant system
Interlocked guards
Low voltage light
Manuals
Remote hand wheel
Swarf conveyor
Through spindle coolant
