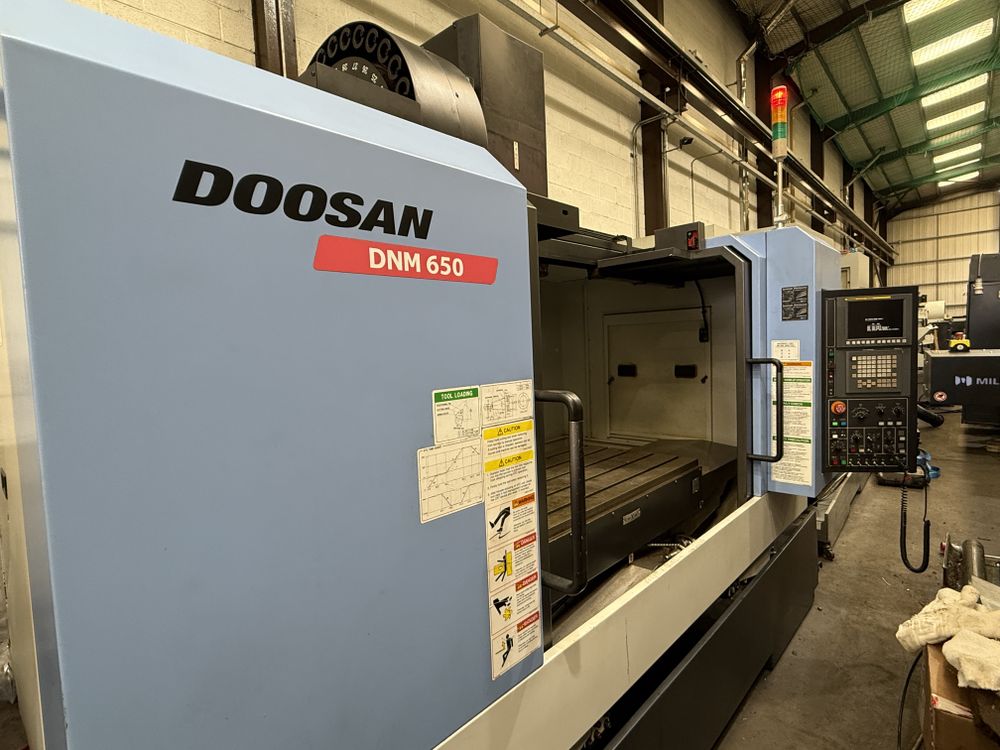

Doosan DNM 650 3 Axis

Traverses XYZ: 1270 x 670 x 625 mm
Rapid Feedrates XYZ: 36 x 36 x 30 m/min
Control: FANUC Oi
Spindle Speed: 12000 rpm
Spindle Motor Power: 15 kW
Tool Size: BT40
Tool Change Capacity: 30
Tool Change Time (Chip to Chip): 3.7 seconds
Maximum Tool Diameter: 80 mm (125 mm without adjacent tools)
Maximum Tool Length: 300 mm
Maximum Tool Weight: 8 kg
Maximum Workpiece Weight: 1000 kg
Min - Max Height under Spindle: 150 ~ 775 mm
Distance from Spindle Centre to Column: 747 mm
Through Spindle Coolant Pressure: 70 bar (1000 psi)
T-Slots: 5 off 18 mm (125 mm centres)
Table Size: 1300 x 670 mm
Machine Dimensions: 4345 x 2720 x 2815 mm
Machine Weight: 8500 kg

Features / Equipment
Coolant
Interlocked Guards
Low Volt Light
Manuals
Remote Hand Wheel
Swarf Conveyor
Through Spindle Coolant
