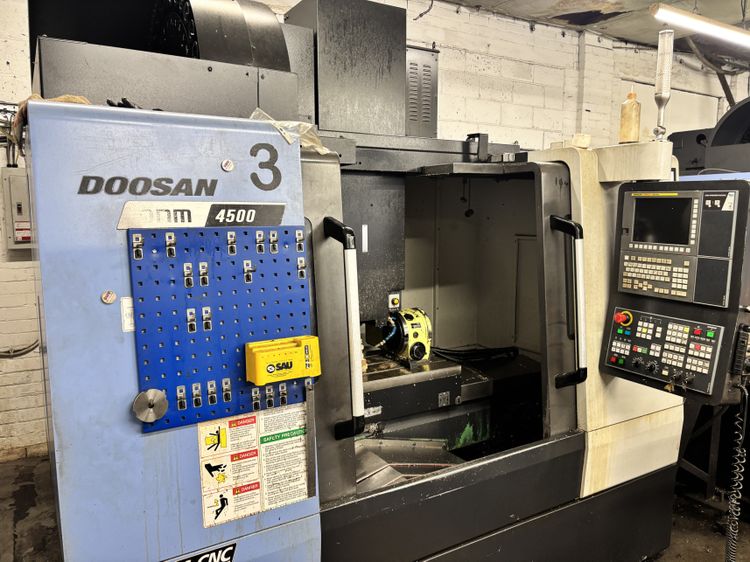

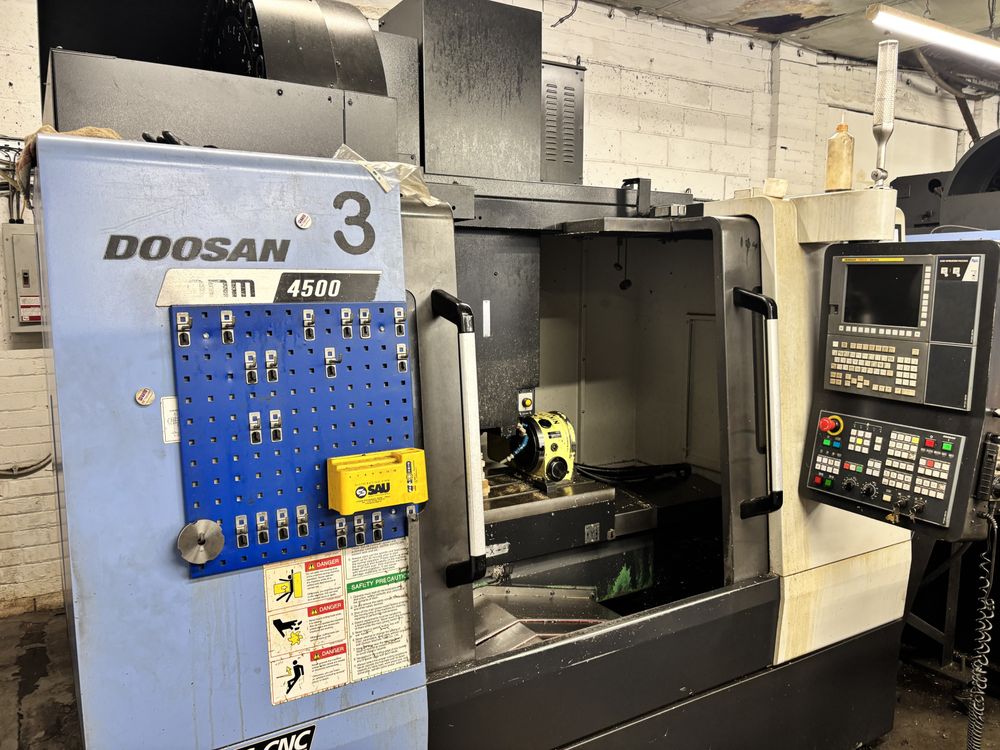

Doosan DNM4500 3 Axis

Axis travel X 800 mm
Axis travel Y 450 mm
Axis travel Z 510 mm

Rapid feedrate X 36 m/min
Rapid feedrate Y 36 m/min
Rapid feedrate Z 30 m/min

4th axis interface
4th axis rotary table
Control FANUC i Series
Coolant system

Interlocked guards
Low voltage light
Remote hand wheel
Swarf conveyor
Tailstock
Through spindle coolant
Spindle speed 12000 rpm
Spindle motor power 18.5/11 kW

Tool taper BT40
Tool change capacity 30 stations
Tool change time (chip to chip) 3.2 seconds

Maximum tool diameter 80 mm
Maximum tool diameter with empty adjacent pockets 125 mm
Maximum tool length 300 mm
Maximum tool weight 8 kg
Minimum height under spindle 150 mm
Maximum height under spindle 660 mm

Table size 1000 x 450 mm
T-slots 3 x 18 mm

Maximum workpiece weight 600 kg
Machine dimensions 3644 x 2615 x 2985 mm
Machine weight 5000 kg
