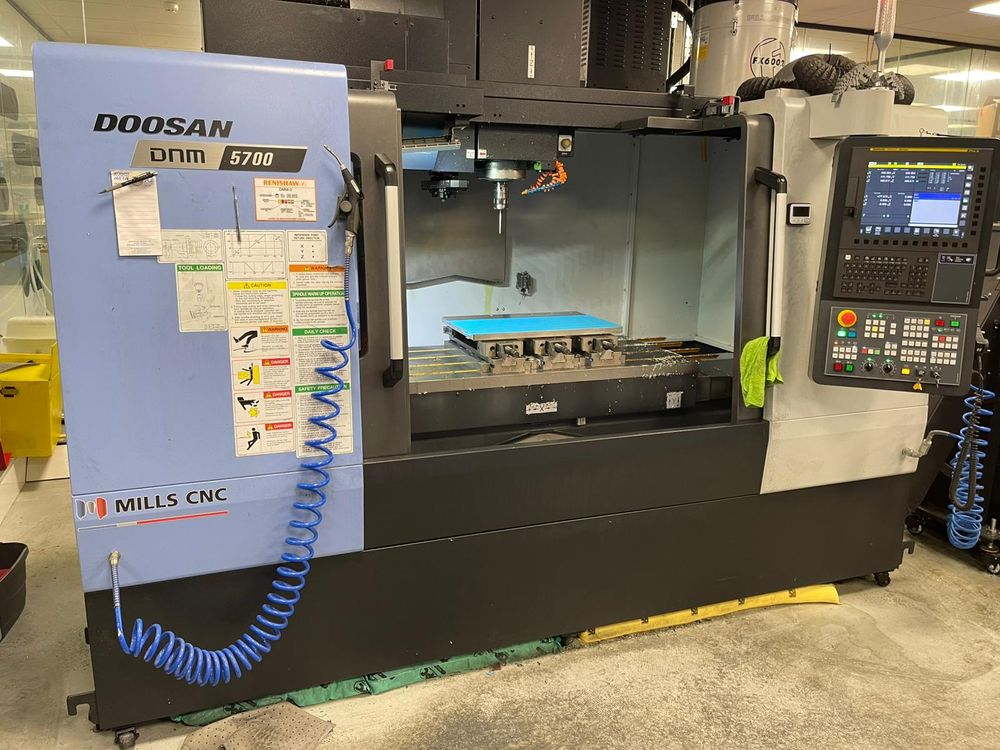

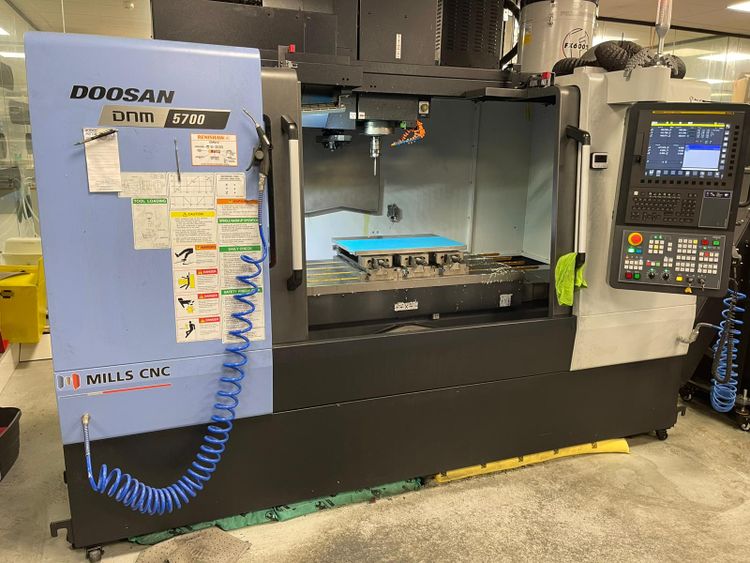

Doosan DNM5700 3 Axis

X-axis travel: 1050 mm
Y-axis travel: 570 mm
Z-axis travel: 510 mm
Rapid feedrate X-axis: 36 m/min
Rapid feedrate Y-axis: 36 m/min
Rapid feedrate Z-axis: 30 m/min
Control: Siemens 828
Coolant system
Through-spindle coolant
Tool setter
USB port
Interlocked guards
Low-voltage light
Remote handwheel
Swarf conveyor
Table size: 1300 x 570 mm
T-slots: 4 x 18 mm
Minimum height under spindle: 150 mm
Maximum height under spindle: 660 mm
Spindle speed: 12000 rpm
Spindle motor power: 18.5 kW
Tool holder taper: BT40
Tool change capacity: 30 stations
Tool change time: 3.2 s
Maximum tool diameter: 80 mm
Maximum tool diameter with adjacent pockets empty: 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Maximum workpiece weight: 1000 kg
Machine dimensions: 4155 x 2221 x 2985 mm
Machine weight: 6500 kg
