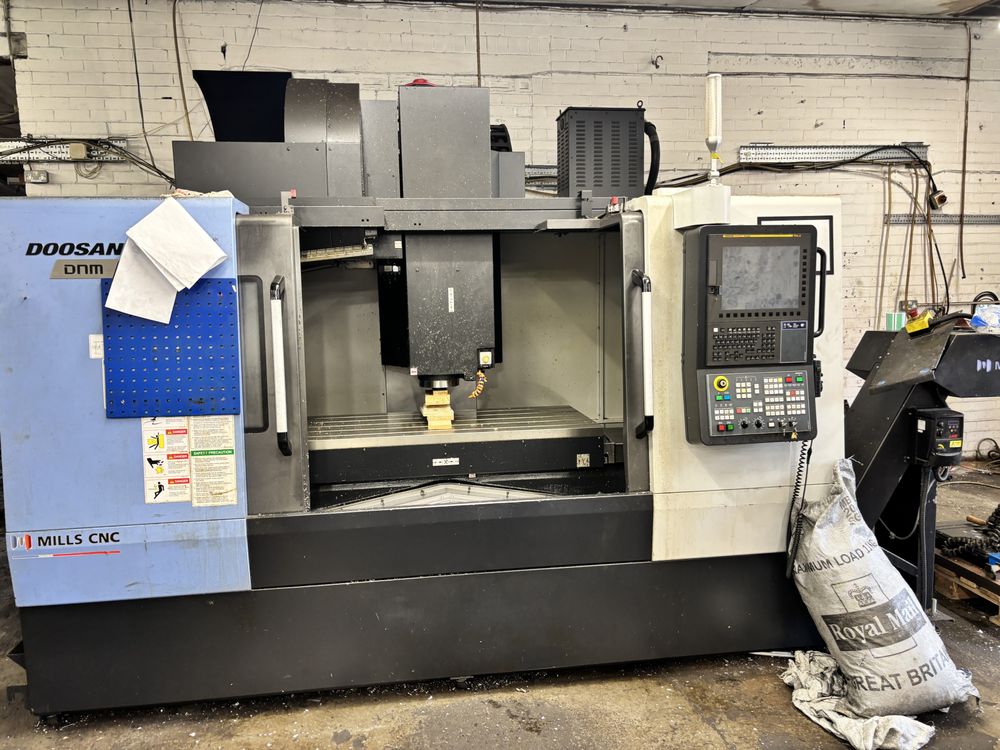

Doosan DNM6700 3 Axis

X axis travel: 1300mm
Y axis travel: 670mm
Z axis travel: 625mm
Control: FANUC Oi
Spindle speed: 12000 RPM
Spindle motor power: 18.5 kW
Rapid feedrates (X/Y/Z): 36 / 36 / 30 m/min
Tool change capacity: 30 station
Tool change time (chip to chip): 3.2 seconds
Tool size: ISO40
Maximum tool diameter: 80mm
Maximum tool diameter with empty adjacent pockets: 125mm
Maximum tool length: 300mm
Maximum tool weight: 8kg
Min - max height under spindle: 150 ~ 775mm
Table size: 1500 x 670mm
T-slots: 5 x 18mm
Maximum workpiece weight: 1300kg
Machine dimensions: 4342 x 2415 x 3100mm
Machine weight: 8500 kg

Coolant system
Interlocked guards
Low voltage light
Remote hand wheel
Swarf conveyor
Through spindle coolant
USB port
