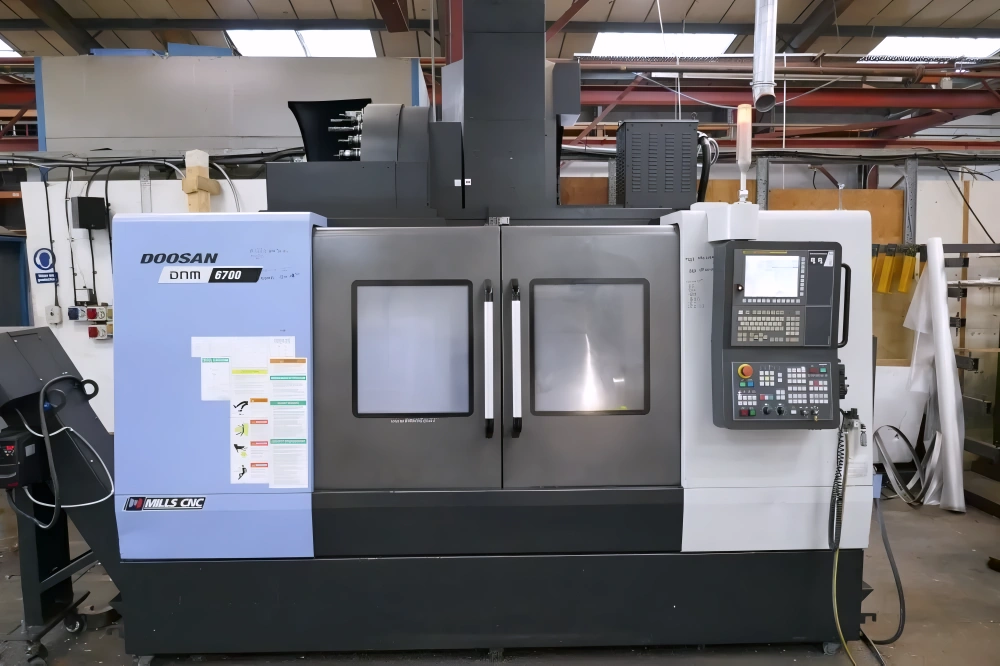

Doosan DNM6700 3 Axis

X-axis travel: 1300 mm
Y-axis travel: 670 mm
Z-axis travel: 625 mm

4th axis rotary table
Control: FANUC 0i

Spindle motor power: 18.5 kW
Spindle speed: 12,000 RPM
Maximum tool diameter: 80 mm
Maximum tool diameter with empty adjacent pockets: 125 mm
Maximum tool length: 300 mm
Maximum tool weight: 8 kg
Tool size: ISO40

Maximum workpiece weight: 1300 kg
Min - max height under spindle: 150 ~ 775 mm

Rapid feedrates XYZ: 36 x 36 x 30 m/min

Table size: 1500 x 670 mm
T-slots: 5 x 18 mm
Tool change capacity: 30 station
Tool change time (chip to chip): 3.2 seconds

Machine dimensions: 4342 x 2415 x 3100 mm
Machine weight: 8,500 kg

Features / Equipment
4th axis rotary table
Coolant
Interlocked guards
Low volt light
Manuals
Remote hand wheel
Swarf conveyor
Tailstock
Through spindle coolant
USB port
