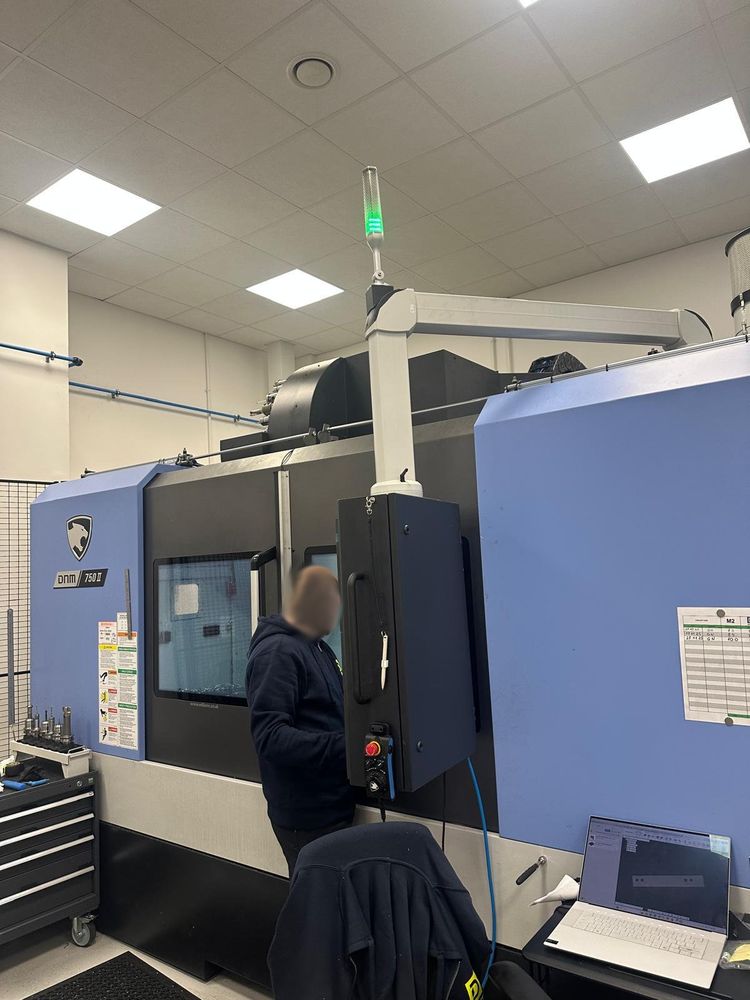

Doosan DNM750II 3 Axis

Traverses XYZ: 1630 x 762 x 650 mm
Rapid Feedrates XYZ: 30 x 30 x 24 m/min
Table Size: 1630 x 760 mm
Maximum Tool Diameter: 125 mm
Maximum Tool Length: 300 mm
Maximum Tool Weight: 8 kg
Maximum Workpiece Weight: 1500 kg
Min - Max Height under Spindle: 150 ~ 800 mm
Spindle Motor Power: 18.5 kW
Spindle Speed: 12,000 RPM
Tool Change Capacity: 30 ATC
Tool Change Time (Chip to Chip): 3.7 seconds
Tool Size: BT40
FANUC i Series Control
Coolant
Interlocked Guards
Low Volt Light
Manuals
Swarf Conveyor
Through Spindle Coolant
Machine Dimensions: 4953 x 2986 x 3170 mm
Machine Weight: 13,500 kg
