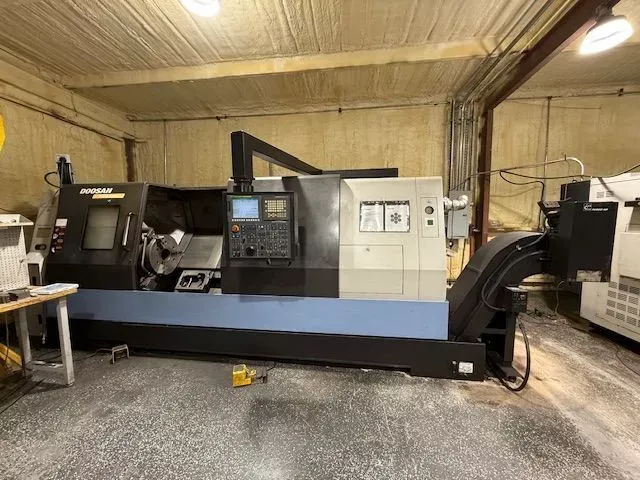

Doosan DOOSAN FANUC SERIES I CNC COLOR CONTROL 1,500 RPM PUMA 400LC 2 Axis

X1 - Axis Travel 14.3"
Z1 - Axis Travel 84.8"
Rapid Traverse Rate X1 629 in/min
Rapid Traverse Rate Z1 787 in/min

Bar Capacity 6.5"
Turning Diameter, Shaft Diameter 21.65"
Swing Over Bed 30.3"
Swing Over Carriage 23.2"
Max. Turning Diameter 22.4"
Distance Between Centers 84.7"
Spindle Bore Diameter 7.1"
Spindle Nose A1-15
Spindle Speed 1,500 RPM
Spindle Horsepower 50 hp
Spindle Torque 1,810 ft-lbs
Speeds 2-Speed Gear Box
Turret Configuration 12
Tailstock Quill Diameter 4.7"
Tailstock Taper MT 6
Tailstock Quill Travel 4.7"
Tailstock Travel 73.2"
Main Motor 50 HP
Control DOOSAN FANUC SERIES I CNC COLOR CONTROL

21" 3-Jaw Hydraulic Chuck
Tool Presetter
Hydraulic Steady Rest 1.20" ~ 9.6" Capacity
Doosan Tool Load Monitoring
Chip Conveyor
All Standard Tool Holders
All Available Manuals
