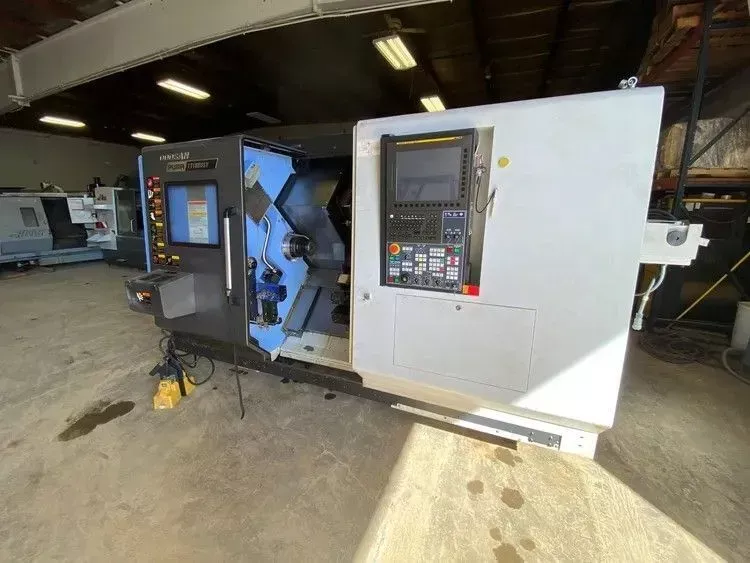

Doosan Doosan Fanuc Series I CNC color control 5,000 RPM PUMA TT1800SY 5 Axis

DOOSAN PUMA TT1800SY
Year: 2021

Swing over bed: 9.1"
Turning diameter: 9.1"
Turning length: 27.6"
Distance between spindles: 38.5"
Spindle nose 1: A2-6
Spindle nose 2: A2-6
Spindle bore diameter 1: 3"
Bar capacity 1: 2.6"
Spindle speed 1: 5,000 RPM
Spindle horsepower 1: 30 HP
Spindle bore diameter 2: 3"
Bar capacity 2: 2.6"
Spindle speed 2: 5,000 RPM
Spindle horsepower 2: 30 HP
X1-axis travel: 6.5"
X2-axis travel: 7.5"
Z1-axis travel: 27.6"
Z2-axis travel: 28.3"
Y1-axis travel: 3.9"
C-axis indexing 1: 0.00°
C-axis indexing 2: 0.00°
W-axis travel (sub spindle): 30.3"
X1 rapid traverse rate: 787 IPM
X2 rapid traverse rate: 787 IPM
Z1 rapid traverse rate: 1,575 IPM
Z2 rapid traverse rate: 1,575 IPM
Y1 rapid traverse rate: 295 IPM
Turret tool positions 1: 24
Turret rotary tool speed 1: 5,000 RPM
Turret rotary tool horsepower 1: 5.5 HP
Turret tool positions 2: 24
Turret rotary tool speed 2: 5,000 RPM
Turret rotary tool horsepower 2: 5.5 HP
Machine weight: 19,500 lb
Control: DOOSAN Fanuc Series I CNC

USB & PCMCIA interface
Doosan EZ Guide I conversational programming
Automatic in-machine tool presetter
Chip conveyor
Bar feed interface
LNS Sprint 565 S2 12' magazine barfeed
Doosan Fanuc Series I CNC color control
Cool Jet Ultra Flex high pressure system
Collet nose 1st spindle
Collet nose 2nd spindle
Auto parts catcher front spindle
Overhead parts catcher second spindle
Parts conveyor second spindle
1,500 cutting hours spindle 1
1,000 cutting hours spindle 2
Full complement rotary heads
Some spindle liners
