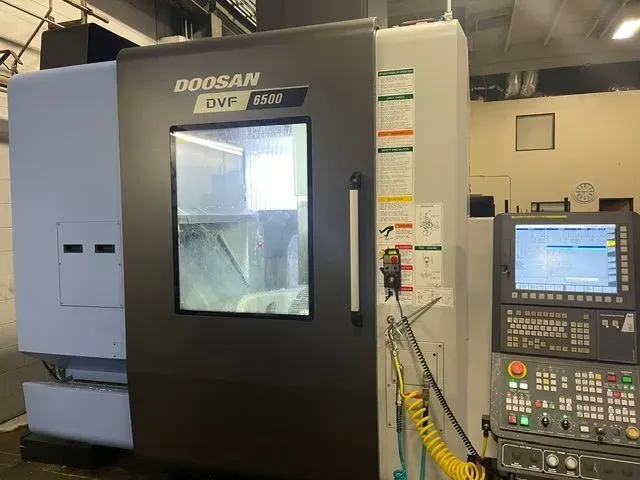

Doosan DVF 6500 5 Axis

X-Axis Travel: 29.5 in
Y-Axis Travel: 30.9 in
Z-Axis Travel: 23.6 in
A-Axis Travel: ±120°
C-Axis Travel: 360°
FANUC Series 31i-B5 CNC Color Control
DSQ 3 AICC II 600 Block Look Ahead
1 GB Data Server
Intelligent Kinematic Compensation
6-Port Hydraulic Fixture Preparation
Extended Memory
Scale Feedback X, Y, Z Axes
5-Axis Machining Capability
Rigid Tapping
Spindle Chiller
Renishaw NC4 Laser Tool Setter
Renishaw RMP600 Spindle Probe
Renishaw CT40 Tool Setter Calibration
Coolant Through Spindle
Chip Conveyor
Spindle Speed: 18,000 rpm
Spindle Motor: 30 hp
Spindle Taper: 40
Rapid Traverse X: 1,771 ipm
Rapid Traverse Y: 1,771 ipm
Rapid Traverse Z: 1,771 ipm
Automatic Tool Changer: 60 tools
Maximum Tool Diameter: 3.0 in
Maximum Tool Diameter (adjacent pockets empty): 4.9 in
Maximum Tool Length: 11.8 in
Maximum Tool Weight: 17.6 lb
Table Size: 25.6 × 23.6 in
Maximum Table Load: 1,322 lb
Maximum Workpiece Diameter: 33.1 in
Maximum Workpiece Height: 19.7 in
Machine Dimensions: 146 × 97 × 122 in
Machine Weight: 31,967 lb
Run Time Hours: 1,446
