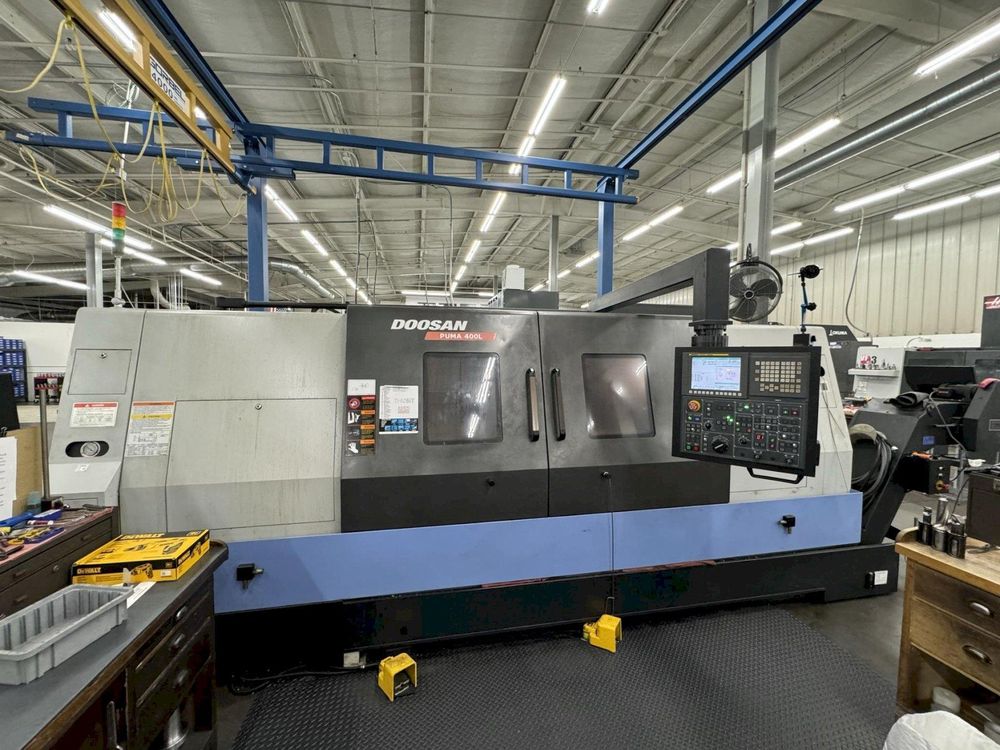

Doosan Fanuc 0i-TD 2800 RPM PUMA 400LB 2 Axis

DOOSAN PUMA 400LB
Year2012

CNC control: Fanuc 0i-TD
Max swing over bed: 30.3"
Max swing over saddle: 23.2"
Max cutting diameter: 21.7"
Max tailstock position: 87.2"
Chuck size: 15"
Max turning length: 82.4"
X-axis travel: 14.3"
Z-axis travel: 84.8"
X-axis rapid traverse: 630 IPM
Z-axis rapid traverse: 800 IPM
Number of tool turrets: 1
Turret tool positions: 12
Spindle nose: A2-11
Spindle bore: 5.2"
Bar capacity: 4.5"
Spindle speed range: 10–2,800 RPM
Spindle horsepower: 35 HP
Tailstock taper: #5 MT
Machine dimensions: 246" x 94"
Machine height: 80"
Machine weight: 24,000 lbs

Fanuc 0i-TD CNC control
15" 3-jaw Kitagawa hydraulic chuck
2-range geared spindle
Automatic tool presetter
12-position turret
Tailstock with programmable quill
LNS turn-through steady rest
Foot switch
Chip conveyor
Coolant system
