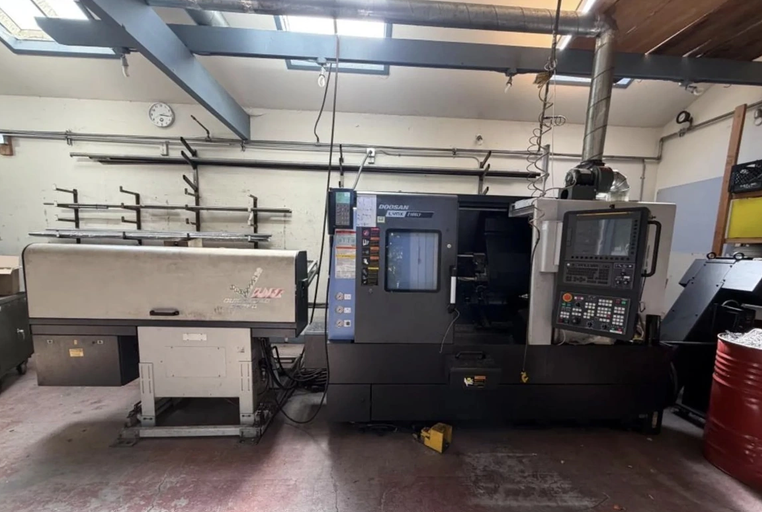

Doosan FANUC 0i-TF Plus 4,500 RPM LYNX 2100LYA 2 Axis

X-axis travel: 8.1 in
Y-axis travel: ±2.05 in
Z-axis travel: 22.0 in
Rapid traverse (X/Z): 1,181 IPM
C-axis
Control: FANUC 0i-TF Plus
LNS bar feeder
Coolant system
Bar capacity: 2.6 in
Swing over bed: 23.6 in
Maximum turning diameter: 13.8 in
Maximum turning length: 20.1 in
Spindle speed: 4,500 RPM
Spindle motor: 20 HP
Spindle nose: A2-6
Live tooling
Live tool speed: 6,000 RPM
Chuck size: 8 in hydraulic chuck
12-station BMT55 turret
Machine weight: Approx. 9,900 lb
Power requirement: 220V / 3 Phase
Hydraulic tailstock
Chip conveyor
Parts catcher
