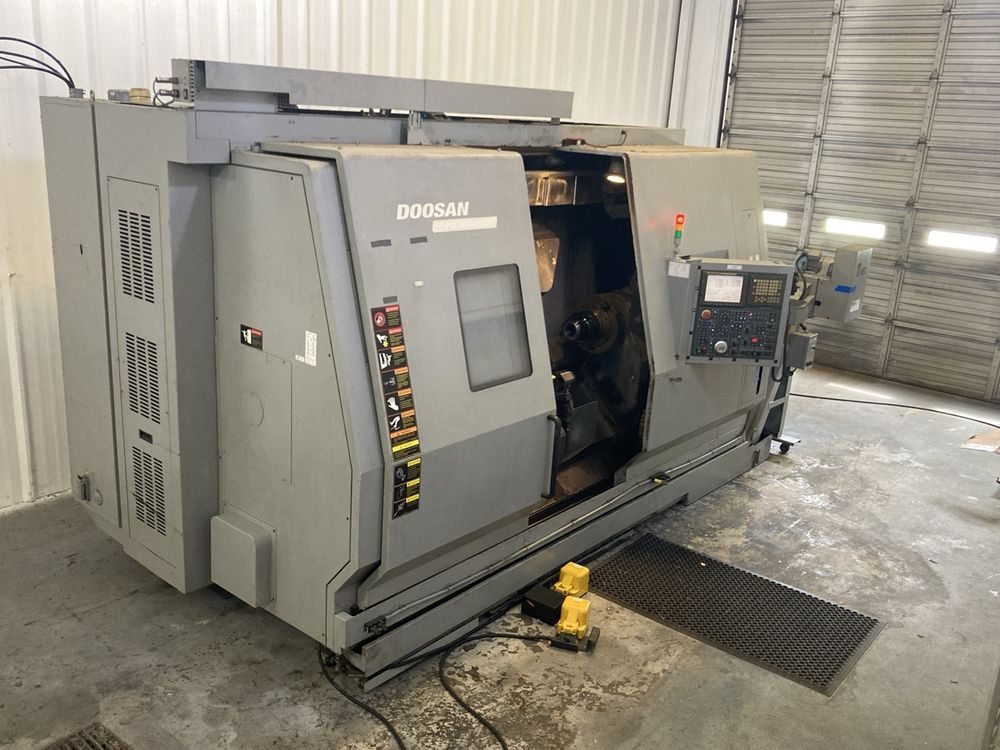

Doosan Fanuc 18i-TB Control 5,000 RPM PUMA MX-2000ST 9 Axis

X1 Axis Travel: 21.85"
X2 Axis Travel: 7.28"
Z1 Axis Travel: 43.11"
Z2 Axis Travel: 44.88"
Y Axis Travel: 6.29" (±3.14")
A-Axis Travel: 41.92"
C1 Axis Travel: 360° (0.001°)
C2 Axis Travel: 360° (0.001°)
B-Axis: 240° (±120°)
B Axis Coupling Clamp Degree: 15°

Chip Conveyor
Live Tooling
Y Axis
B Axis
C Axis

Bar Working Diameter: 2.55"
Swing Over Bed: 29.52"
Swing Over Saddle: 23.62"
Recommended Turning Diameter: 8.26"
Max Turning Diameter: 21.65"
Max Working Length: 40.15"
Main Spindle Motor: 29.5 HP / 20 HP
Max Spindle Speed: 5,000 RPM
Spindle Nose: A2-6
Spindle Diameter: 4.33"
Spindle Through Hole: 2.99"
Bore of Draw Tube: 2.59"
Sub Spindle
Milling Spindle Motor: 20 HP / 15 HP
Max Milling Spindle Speed: 10,000 RPM
Milling Spindle Diameter: 2.75"
Spindle Taper: Capto C6
Chuck Size: 8"
Tool Changer Capacity: 24
Tool Changer Arm: Swing Arm
Tool Change Time: 1.5 sec
Number of Tool Stations: 12
Boring Bar Size: 1.57"
Rotary Tool Speed: 4,000 RPM
Rotary Tool Motor: 7.5 HP
Slant Angle: 45°
Machine Floor Dimensions: 177.95" x 98.22" x 102.36"
Machine Weight: 12,500 kg (27,557 lbs)
