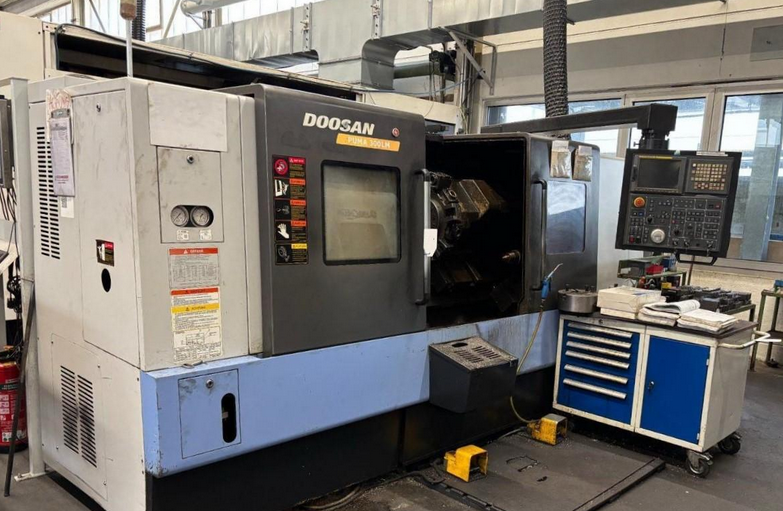

Doosan FANUC 21i-TB 3500 rpm PUMA 300LMB LATHE 3 Axis

CNC DOOSAN PUMA 300LMB LATHE
Year: 2008

Distance between centers: 1.100 mm
Max swing over bed: 590 mm
Max swing over slide: 450 mm
Max Mechanized Ø: 355 mm
Max. length of the piece 1.233 mm
Spindle hole diameter: 90 mm
Spindle nose: A2-8
X-axis travel: 250 mm
Z-axis travel: 1.330 mm
C-Axis: 360 º
Speed: 3500 rpm
Power: 50 kVA
Approx machine weight: 6700 kgs
Machine dimensions: 3.990 x 1.934 x 2.065 mm


Equipped with:
Control: FANUC 21i-TB
3-jaw chuck: Yes
Motorized tool 40-4000 r.p.m.
Automatic turret: 12 stations
Chip conveyor: Yes
