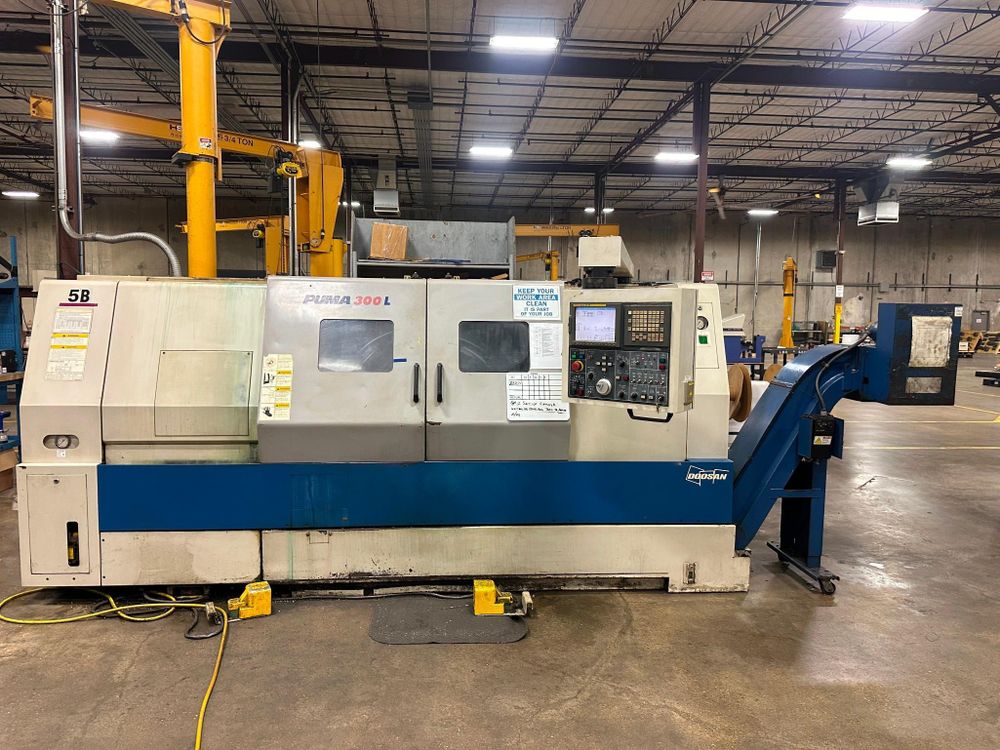

Doosan Fanuc 21i-TB CNC 2800 RPM Puma 300LC 2 Axis

X-Axis Travel: 11.1″
Z-Axis Travel: 52.4″
Rapid Traverse X-Axis: 787 IPM
Rapid Traverse Z-Axis: 945 IPM
Control: Fanuc 21i-TB CNC
Bar Capacity: 4.05″
Swing Over Bed: 22.4″
Max Turning Diameter: 15.7″
Max Turning Length: 50.4″

Spindle Speed: 0–2800 RPM
Spindle Motor: 35 HP
Spindle Nose: A2-11
Spindle Bore: 4.625″

Turret Capacity: 12 stations
Turret Index Time: 0.15 second
Tailstock Taper: MT-4
Tailstock Quill Diameter: 3.97″
Tailstock Quill Travel: 4.7″
15″ Kitagawa B-15 chuck
Chip conveyor
Programmable tailstock
Presetter
Tool blocks included; no tooling
