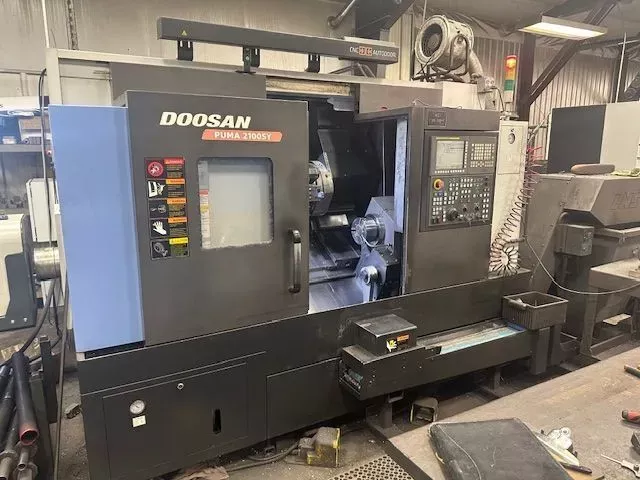

Doosan FANUC 31i-A CNC color control 5000 rpm PUMA 2100SY 5 Axis

X-axis travel: 10.2 in
Z-axis travel: 23.2 in
Y-axis travel: 4.13 in
W-axis travel (sub spindle): 23.2 in
C-axis indexing main spindle: 0.00
C-axis indexing sub spindle: 0.00

Manual Guide i conversational programming
Tool setter
Auto parts catcher
Parts conveyor
Turbo side discharge chip conveyor
High-pressure through-spindle coolant system
Barfeed interface
Short magazine bar feed system
Spindle liners
Auto door

Embedded Ethernet
Rigid tapping
Helical interpolation
Cylindrical interpolation
Thread cutting retract
Swing over bed: 30.7 in
Turning diameter: 15.9 in
Turning length: 20.47 in

Distance between spindles: 23.2 in
Bar capacity main spindle: 2.6 in
Bar capacity sub spindle: 2.0 in
Main spindle speed: 4,500 rpm
Main spindle motor power: 25 hp
Main spindle nose: A2-6
Main spindle bore diameter: 3.0 in
Sub spindle speed: 4,500 rpm
Sub spindle nose: A2-5
Sub spindle bore diameter: 2.44 in
Milling spindle speed: 5,000 rpm
Milling motor power: 7.5 hp
Rapid traverse X-axis: 1,181 ipm
Rapid traverse Z-axis: 1,181 ipm
Rapid traverse Y-axis: 787 ipm
Main chuck size: 8 in
Sub chuck size: 6 in
Turret stations: 24
Rotary tool interface: BMT55
Machine weight: 13,500 lb
