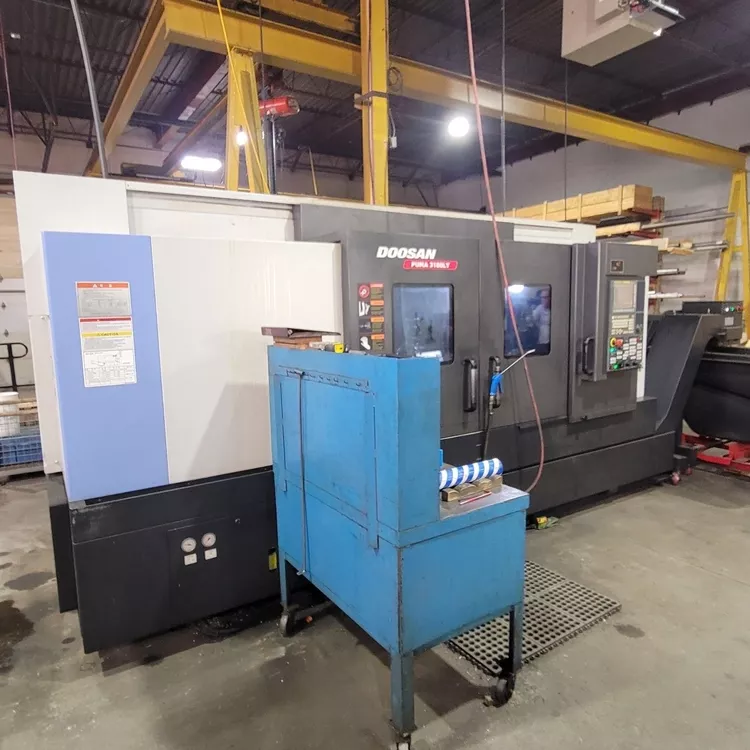

Doosan FANUC 31i-MB CNC controller 2,800 rpm PUMA 3100LY 4 Axis

X-axis travel: 11.5 in
Z-axis travel: 51 in
Y-axis travel: 5.12 in
C-axis indexing: 0.00
FANUC 31i-MB CNC controller
Tool presetter
Chip conveyor
Swing over bed: 33.5 in
Turning diameter: 26.4 in
Turning length: 50.6 in
Distance between centers: 53.1 in
Bar capacity: 4.1 in
Spindle speed: 2,800 rpm
Spindle motor power: 30 hp
Spindle nose: A2-11
Spindle bore diameter: 4.5 in
Milling spindle speed: 5,000 rpm
Milling motor power: 10 hp
Rapid traverse X-axis: 1,181 ipm
Rapid traverse Z-axis: 1,181 ipm
Rapid traverse Y-axis: 393 ipm
Chuck size: 12 in
Turret stations: 12
Tailstock quill diameter: 4.7 in
Tailstock taper: MT5
Tailstock quill travel: 4.7 in
Programmable tailstock: Yes
Machine weight: 17,700 lb
