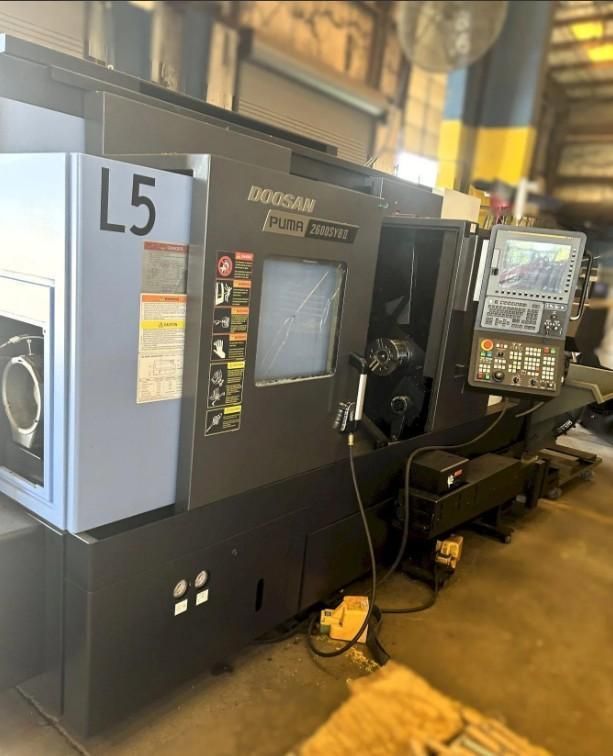

Doosan Fanuc 31i-Model A 2,800 RPM PUMA 2600SYB II 3 Axis

CNC Control: Fanuc 31i-Model A
Swing: 30.7 in
Turning Diameter: 14.8 in
Center Distance: 28.5 in
Chuck Size: 12 in
Bar Capacity: 3 in
X Axis Travel: 10.2 in
Z-Axis Travel: 32.7 in
C Axis Index: 0.001°
Rapid Traverse Rate (X/Y/Z): 1,181 / 394 / 1,181 ipm
Spindle Nose: A2-8
Spindle Speed: 2,800 RPM
Main Motor: 30 hp
Live Tooling: Yes
Live Tooling Speed: 5,000 RPM
Live Tooling Motor: 7 hp
Tailstock: No
Y Axis: Yes
Sub Spindle: Yes
Sub Spindle Nose: A2-5
Sub Spindle Chuck: 8 in
Sub Spindle Speed: 4,500 RPM
Sub Spindle Motor: 10 hp
Turret Capacity: 24 Stations
Machine Dimensions: 145" x 74" x 86"
Machine Weight: 14,190 lb
Equipped With: Fanuc 31i-Model A CNC Control
Equipped With: Chip Conveyor
Equipped With: Coolant Tank & Pump
Equipped With: Parts Catcher
Equipped With: Tool Presetter
Equipped With: Parts Conveyor
Equipped With: Auto Tool Length Measurement
Equipped With: Live Tooling
Equipped With: Sub Spindle
Equipped With: Y Axis
Equipped With: Embedded Ethernet
Equipped With: Rigid Tapping
